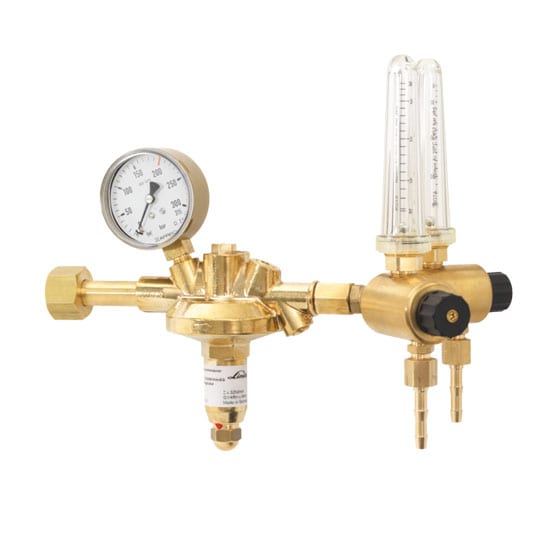

acc. to DIN EN ISO 2503, class 20, single stage, with double flowmeter for exact control of the flow in Nl/min, with high pressure compensation for constant working pressure with safety gauge acc. to ISO 5171, with shut off valvesinlet pressure max: 200 bar
outlet pressure: 2x 2,5 bar pre adjusted
flow: 2 x 3,0 - 30,0 Nl/min. adjustable
inlet: W 21,8x1/14 RH nut acc. to DIN 477-1, no. 6
outlet: 2x G 1/4 RHk x 6 mm tail-piece acc. EN 560
inlet gauge: 0 – 315/200 bar
width x height x depth: 250 x 230 x 130 mm
with Linde-Logo stamped on body, with Linde operating manual and Linde adhesive tape
Replaces article 2264551189
Application:
- Automotive Industry
- Cutting
- Manufacturing Industry
- Medical Technology
- Petrochemical Industry
- Pharmaceutical Industry
- Research & Development
- Welding
Class (purpose):
- Technical gases
Diaphragm Material:
EPDM
Flowmeter:
HP gauge scale:
200 Bar
Inlet Connection:
W 21,8 x 1/14 RH
Inlet pressure:
200 Bar
Linde Code:
32492243
Material:
Brass
Outlet Connection:
G 1/4 RHk x 6mm
Outlet pressure:
2,5 Bar
Product type:
Cylinder regulators
Regulation Type:
Single stage
Relief valve:
Shut off valve:
Standard:
ISO 5171
Temperature range:
-20 up to +60 °C
Type of Gas:
Noble gases(mixture)
W (Width) x H (Height) x D (Depth):
250 x 230 x 130 mmmm.
