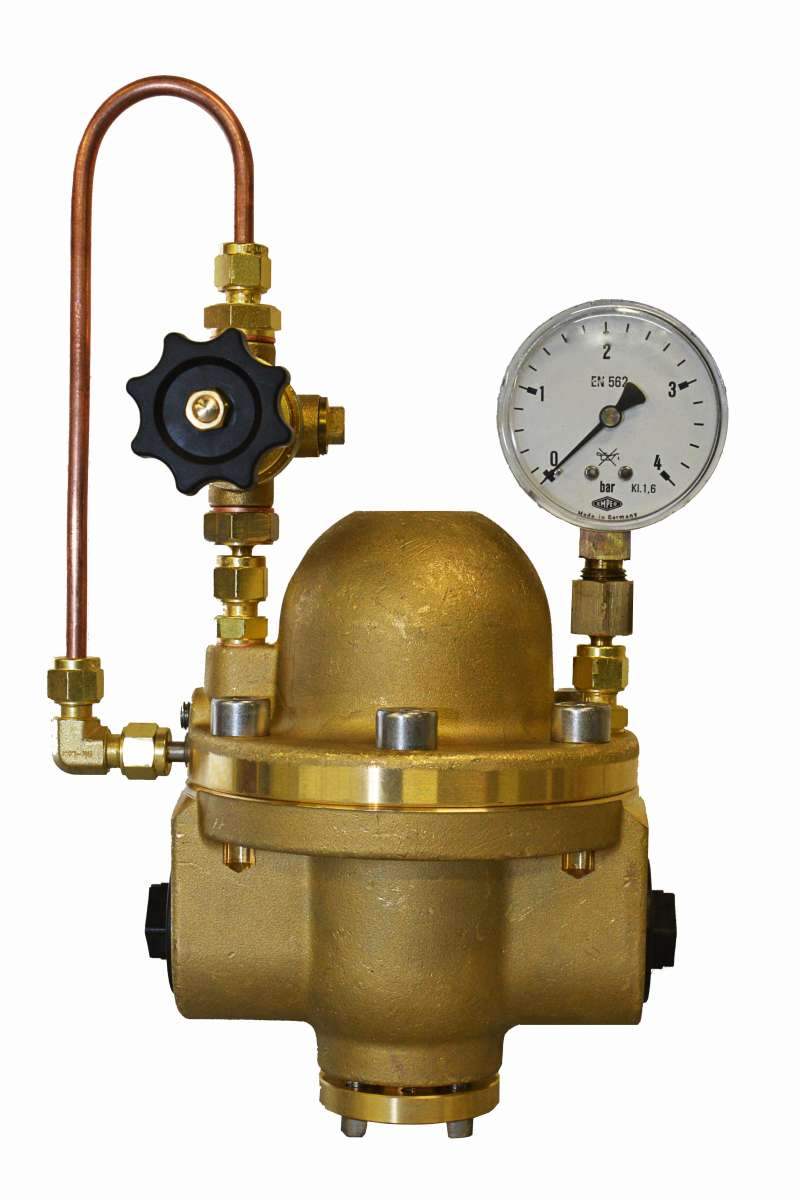

Line dome pressure reducer Vulkan LD1 PN40 CO2, with control pressure reducer complete, with control pressure reducer, material: brass / EPDM
Standards & Design:
single-stage design, maximum inlet pressure: 40 bar, output pressure: 0
Technical data:
• maximum inlet pressure: 40 bar, output pressure: 0
• outlet pressure (200 Nm?/h air at 39 bar outlet pressure) Inlet: internal thread G1RHi, outlet: internal thread G1RHi, input pressure gauge: without, output pressure gauge: without
• output pressure: 0
• Inlet: internal thread G1RHi, outlet: internal thread G1RHi, input pressure gauge: without, output pressure gauge: without
• outlet: internal thread G1RHi, input pressure gauge: without, output pressure gauge: without
Standards & Design:
single-stage design, maximum inlet pressure: 40 bar, output pressure: 0
Technical data:
• maximum inlet pressure: 40 bar, output pressure: 0
• outlet pressure (200 Nm?/h air at 39 bar outlet pressure) Inlet: internal thread G1RHi, outlet: internal thread G1RHi, input pressure gauge: without, output pressure gauge: without
• output pressure: 0
• Inlet: internal thread G1RHi, outlet: internal thread G1RHi, input pressure gauge: without, output pressure gauge: without
• outlet: internal thread G1RHi, input pressure gauge: without, output pressure gauge: without
Type of Gas:
Carbon Dioxide (CO2)
Product type:
Line Pressure Regulators
Regulation Type:
Single stage
Inlet pressure (max):
40 Bar
Outlet pressure:
0 - 40 Bar
Gas Quality:
up to 4.5 (technical gases)
Flow rate:
1700 Nm³/h
Inlet Connection:
G 1 RHi
Outlet Connection:
G 1 RHi
Application:
- Automotive Industry
- Chemical Industry
- Cutting
- Manufacturing Industry
- Petrochemical Industry
- Pharmaceutical Industry
- Research & Development
- Welding
Class (purpose):
- Technical gases
Material:
Brass
