Tapping Points: Pressure Reducer Vulkan E10F Flowmeter LabLine Forming Gas 34 Nl/min. Completely chrome-plated with metal diaphragms for gas purity 5.0, based on ISO 2503
Standards & Design:
Class 20
single-stage design, with flowmeter for monitoring the exact flow rate in Nl/min
according to DIN EN 560
Technical data:
• Maximum inlet pressure: 20 bar
• Output pressure: 4
• Inlet: G 3/8 LHk U-nut according to DIN EN 560
• Outlet: 6mm double clamp ring, stainless steel
Dimensions:
Width x Height x Depth: 120 x 210 x 65 mm
Standards & Design:
Class 20
single-stage design, with flowmeter for monitoring the exact flow rate in Nl/min
according to DIN EN 560
Technical data:
• Maximum inlet pressure: 20 bar
• Output pressure: 4
• Inlet: G 3/8 LHk U-nut according to DIN EN 560
• Outlet: 6mm double clamp ring, stainless steel
Dimensions:
Width x Height x Depth: 120 x 210 x 65 mm
Type of Gas:
Helium (He)

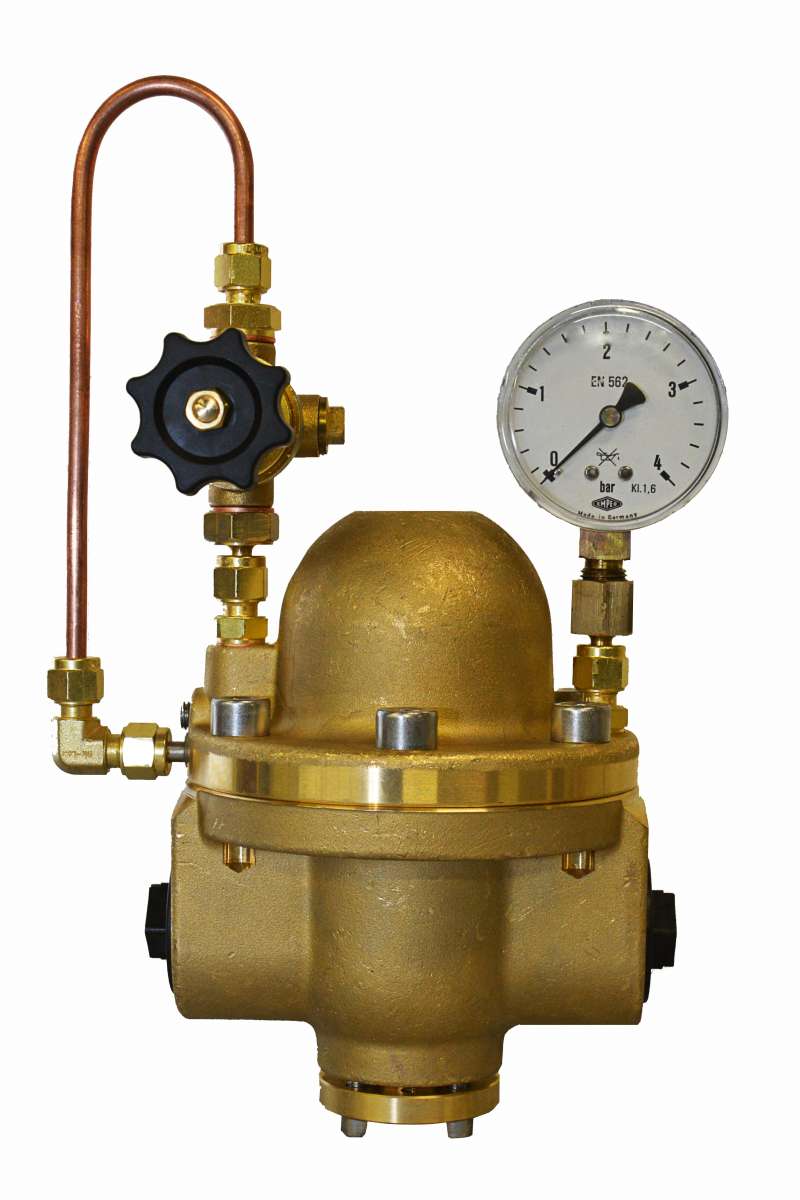

Product type:
Line Pressure Regulators
Regulation Type:
Single stage
Inlet pressure (max):
50 Bar
Gas Quality:
up to 4.5 (technical gases)
Flow rate:
2100 Nm³/h
Inlet Connection:
G 1 RHi
Outlet Connection:
G 1 RHi
Application:
- Gas Chromatography
- Laboratory
- Medical Technology
- Pharmaceutical Industry
- Photovoltaic Industry
- Research & Development
- Semiconductor Industry
- Spectrometry
- Universities
Class (purpose):
- Technical gases
Material:
Brass
LP Gauge:
LP gauge scale:
0 to 49 Bar
W (Width) x H (Height) x D (Depth):
120x210x65mm.
