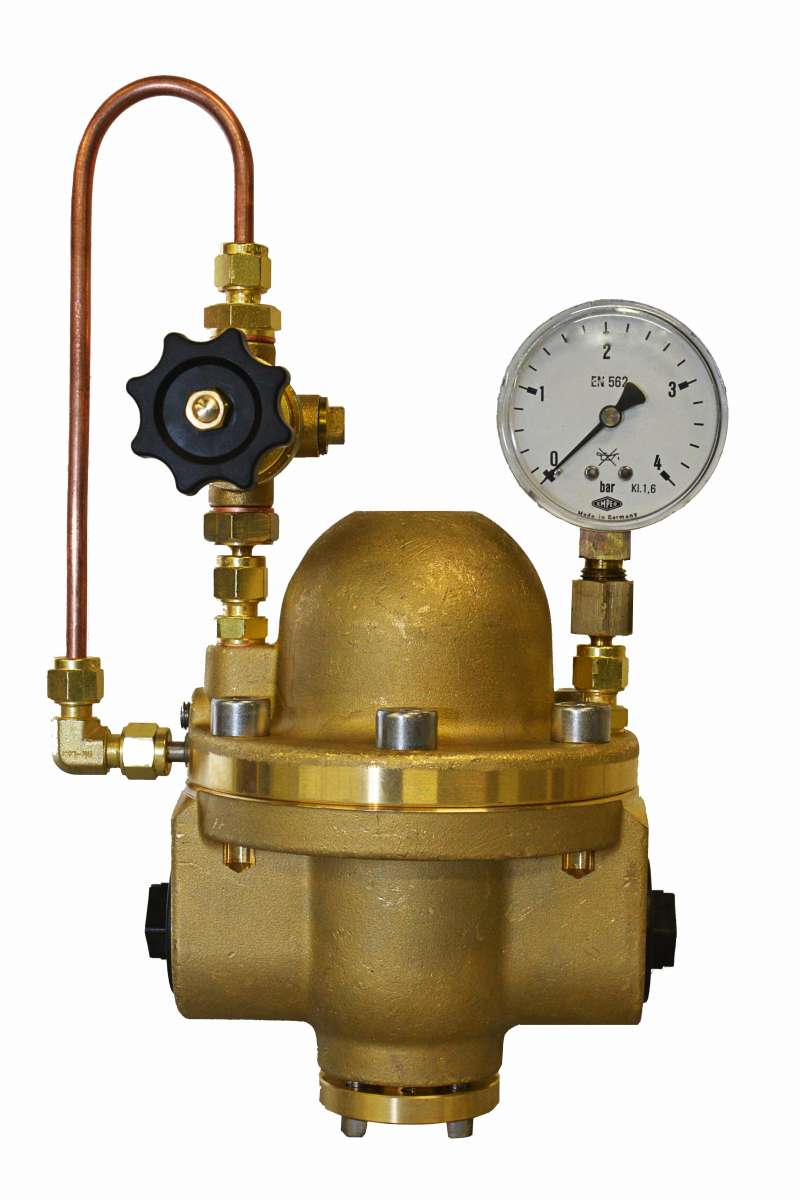

Vulkan LDS1 PN40 (50) line dome pressure reducer complete with control pressure reducer, material: brass/Viton, single-stage design, maximum inlet pressure: 40 bar (inert gas, helium max. 50 bar), output pressure: 0.5 - 39 bar adjustable (inert gas, helium 0.5 - 49 bar), maximum output: 1,700 Nm³/h air at 39 bar outlet pressure (inert gas, helium 2,100 Nm³/h air at 49 bar outlet pressure), input: internal thread G1RHi, output: internal thread G1RHi, input pressure gauge: optional (add in the selection window), output pressure gauge: optional (add in the selection window)
Application:
- Automotive Industry
- Chemical Industry
- Cutting
- Manufacturing Industry
- Petrochemical Industry
- Pharmaceutical Industry
- Research & Development
- Welding
Class (purpose):
- Technical gases
Flow rate:
1700 Nm³/h
Gas Quality:
up to 4.5
Inlet Connection:
G 1 RHi
Inlet pressure:
50 Bar
Material:
Brass
Outlet Connection:
G 1 RHi
Outlet pressure:
50 Bar
Product type:
Line Pressure Regulators
Regulation Type:
Single stage
Type of Gas:
Helium (He)
Outlet pressure:
50Bar
