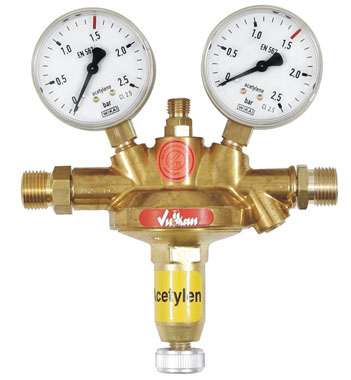

Line pressure reducer Vulkan L10 acetylene G1/2RHak external thread on both sides
Standards & Design:
Single-stage design, with safety pressure gauges according to DIN EN ISO 5171
Technical data:
• Maximum inlet pressure: 1
• outlet pressure
• Output pressure: 0 - 1
• Inlet: external thread G1/2RHak, Outlet: external thread G1/2RHak
• Outlet: external thread G1/2RHak
• Inlet pressure gauge: 0 - 2
• Outlet pressure gauge: 0 - 2
Dimensions:
Width x Height x Depth: 162 x 190 x 75 mm
Standards & Design:
Single-stage design, with safety pressure gauges according to DIN EN ISO 5171
Technical data:
• Maximum inlet pressure: 1
• outlet pressure
• Output pressure: 0 - 1
• Inlet: external thread G1/2RHak, Outlet: external thread G1/2RHak
• Outlet: external thread G1/2RHak
• Inlet pressure gauge: 0 - 2
• Outlet pressure gauge: 0 - 2
Dimensions:
Width x Height x Depth: 162 x 190 x 75 mm
Application:
- Automotive Industry
- Chemical Industry
- Cutting
- Manufacturing Industry
- Petrochemical Industry
- Pharmaceutical Industry
- Research & Development
- Welding
Class (purpose):
- Technical gases
Flow rate:
8 Nm³/h
Gas Quality:
up to 4.5
HP Gauge:
HP gauge scale:
0 to 2,5 Bar
Inlet Connection:
G 1/2 RHak (according to EN 560)
Inlet pressure:
1,5 Bar
LP Gauge:
LP gauge scale:
0 to 2,5 Bar
Material:
Brass
Outlet Connection:
G 1/2 RHak (according to EN 560)
Outlet pressure:
1,5 Bar
Product type:
Line Pressure Regulators
Regulation Type:
Single stage
Type of Gas:
Acetylene (C2H2)
W (Width) x H (Height) x D (Depth):
162x190x75mm.
