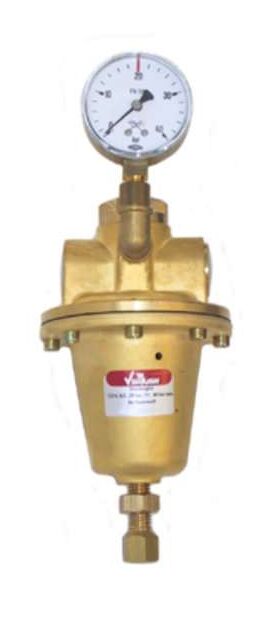

Vulkan LR40 in-line ribbed pressure reducer for inert gases G3/4RH external on both sides
Standards & Design:
Single-stage design, with safety gauges according to DIN EN ISO 5171
Technical data:
• Maximum inlet pressure: 100 bar
• outlet pressure and 81 bar inlet pressure
• Output pressure: 15 - 40 bar adjustable
• Inlet: external thread G3/4RHak
• Outlet: external thread G3/4RHak
Dimensions:
Width x Height x Depth: 215 x 330 x 85 mm
Standards & Design:
Single-stage design, with safety gauges according to DIN EN ISO 5171
Technical data:
• Maximum inlet pressure: 100 bar
• outlet pressure and 81 bar inlet pressure
• Output pressure: 15 - 40 bar adjustable
• Inlet: external thread G3/4RHak
• Outlet: external thread G3/4RHak
Dimensions:
Width x Height x Depth: 215 x 330 x 85 mm
Application:
- Automotive Industry
- Chemical Industry
- Cutting
- Manufacturing Industry
- Petrochemical Industry
- Pharmaceutical Industry
- Research & Development
- Welding
Class (purpose):
- Technical gases
Flow rate:
280 Nm³/h
Gas Quality:
up to 5.0
HP Gauge:
HP gauge scale:
0 to 160 Bar
Inlet Connection:
G 3/4 RHak (according to EN 560)
Inlet pressure:
100 Bar
LP Gauge:
LP gauge scale:
0 to 60 Bar
Material:
Brass
Outlet Connection:
G 1/2 RHak (according to EN 560)
Outlet pressure:
40 Bar
Product type:
Line Pressure Regulators
Regulation Type:
Single stage
Type of Gas:
Carbon Dioxide (CO2)
W (Width) x H (Height) x D (Depth):
215x330x85mm.
