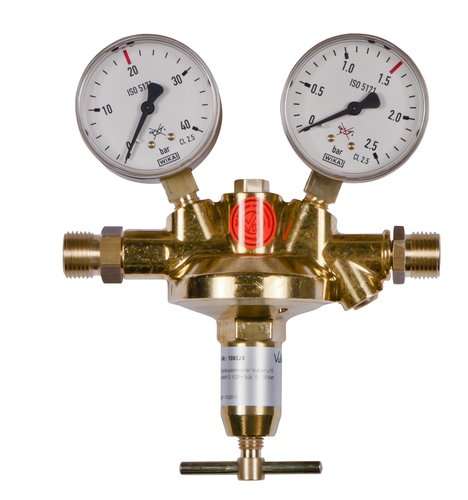

Vulkan L15 line pressure reducer for compressed air G1/2RH, 0 - 1.5 bar
Standards & Design:
single-stage design with safety pressure gauges according to DIN ISO 5171
according to EN 560
Technical data:
• Maximum inlet pressure: 20 bar
• outlet pressure
• Output pressure: 0 - 1
• Inlet: external thread G1/2RH according to EN 560
• Outlet: external thread G1/2RH according to EN 560
• Inlet pressure gauge: 0 - 40/20 bar
• Outlet pressure gauge: 0 - 2
Dimensions:
Width x Height x Depth: 200 x 200 x 75 mm
Standards & Design:
single-stage design with safety pressure gauges according to DIN ISO 5171
according to EN 560
Technical data:
• Maximum inlet pressure: 20 bar
• outlet pressure
• Output pressure: 0 - 1
• Inlet: external thread G1/2RH according to EN 560
• Outlet: external thread G1/2RH according to EN 560
• Inlet pressure gauge: 0 - 40/20 bar
• Outlet pressure gauge: 0 - 2
Dimensions:
Width x Height x Depth: 200 x 200 x 75 mm
Type of Gas:
Compressed Air (mixture)
Product type:
Line Pressure Regulators
Regulation Type:
Single stage
Inlet pressure (max):
20 Bar
Flow rate:
8 Nm³/h
Application:
- Automotive Industry
- Chemical Industry
- Cutting
- Manufacturing Industry
- Petrochemical Industry
- Pharmaceutical Industry
- Research & Development
- Welding
Material:
Brass
HP Gauge:
HP gauge scale:
0 to 40 Bar
LP Gauge:
LP gauge scale:
0 to 2,5 Bar
W (Width) x H (Height) x D (Depth):
200x200x75mm.
