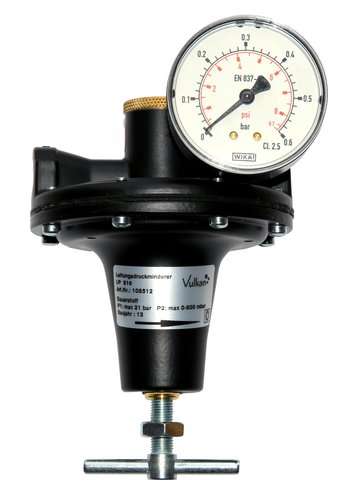

Vulkan LP216 line pressure reducer for compressed air G1/4RHi, 1 - 250 mbar
Standards & Design:
single-stage design, with safety gauges according to DIN EN ISO 5171, maximum inlet pressure: 21 bar, output pressure: 1 - 250 mbar, adjustable
Technical data:
• maximum inlet pressure: 21 bar, output pressure: 1 - 250 mbar, adjustable
• output pressure: 1 - 250 mbar, adjustable
• Inlet: internal thread G1/4RHi, output: internal thread G1/4RHi, output gauge: 0 - 250 mbar
Dimensions:
Width x Height x Depth: 108 x 162 x 108 mm
Standards & Design:
single-stage design, with safety gauges according to DIN EN ISO 5171, maximum inlet pressure: 21 bar, output pressure: 1 - 250 mbar, adjustable
Technical data:
• maximum inlet pressure: 21 bar, output pressure: 1 - 250 mbar, adjustable
• output pressure: 1 - 250 mbar, adjustable
• Inlet: internal thread G1/4RHi, output: internal thread G1/4RHi, output gauge: 0 - 250 mbar
Dimensions:
Width x Height x Depth: 108 x 162 x 108 mm
Type of Gas:
Compressed Air (mixture)
Product type:
Line Pressure Regulators
Regulation Type:
Single stage
Inlet pressure (max):
20 Bar
Outlet pressure:
0 - 0,25 Bar
Application:
- Automotive Industry
- Chemical Industry
- Cutting
- Manufacturing Industry
- Petrochemical Industry
- Pharmaceutical Industry
- Research & Development
- Welding
Material:
Brass
LP Gauge:
LP gauge scale:
0 to 0,250 Bar
W (Width) x H (Height) x D (Depth):
108x162x108mm.
