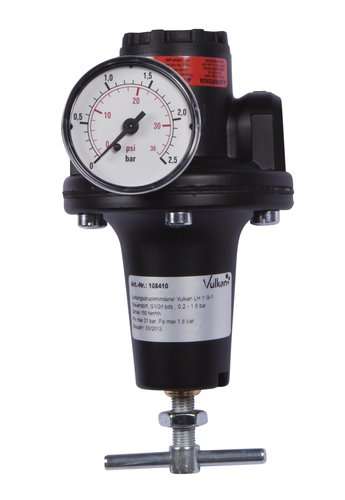

Vulkan LH 119-1 nitrogen line pressure reducer, G 1/2 if both sides, 0.2 - 1.8 bar
Standards & Design:
single-stage design, with safety pressure gauge according to DIN EN ISO 5171
Technical data:
• Maximum inlet pressure: 21 bar
• outlet pressure
• output: 150 Nm³/h compressed air at 1
Dimensions:
Width x Height x Depth: 90 x 175 x 90 mm
Standards & Design:
single-stage design, with safety pressure gauge according to DIN EN ISO 5171
Technical data:
• Maximum inlet pressure: 21 bar
• outlet pressure
• output: 150 Nm³/h compressed air at 1
Dimensions:
Width x Height x Depth: 90 x 175 x 90 mm
Type of Gas:
Compressed Air (mixture)
Product type:
Line Pressure Regulators
Regulation Type:
Single stage
Inlet pressure (max):
20 Bar
Outlet pressure:
0 - 10 Bar
Gas Quality:
up to 4.5 (technical gases)
Flow rate:
150 Nm³/h
Inlet Connection:
G 1/2 RHi
Outlet Connection:
G 1/2 RHi
Application:
- Automotive Industry
- Chemical Industry
- Cutting
- Manufacturing Industry
- Petrochemical Industry
- Pharmaceutical Industry
- Research & Development
- Welding
Class (purpose):
- Technical gases
Material:
Brass
LP gauge scale:
0 to 4 Bar
W (Width) x H (Height) x D (Depth):
90x175x90mm.
