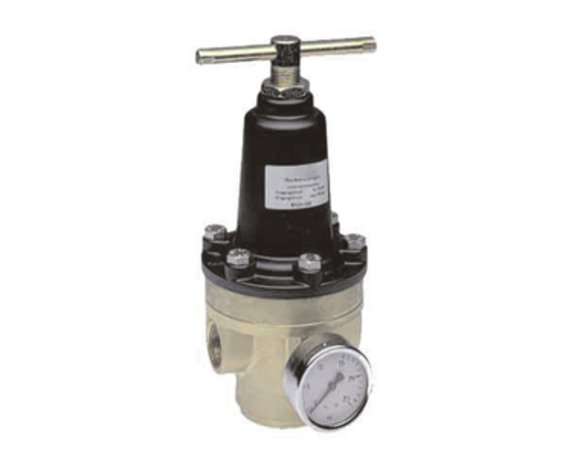

Line pressure reducer Vulkan LH120 Helium G1RHi both sides. 0 - 50 bar with safety pressure gauge
Standards & Design:
according to DIN EN ISO 5171
Technical data:
• Outlet pressure: 0
• output: 300 Nm?/h at 50 bar outlet pressure
• Inlet: internal thread G1RHi
• Outlet: internal thread G1RHi
Dimensions:
Width x Height x Depth: 132 x 295 x 132 mm
Standards & Design:
according to DIN EN ISO 5171
Technical data:
• Outlet pressure: 0
• output: 300 Nm?/h at 50 bar outlet pressure
• Inlet: internal thread G1RHi
• Outlet: internal thread G1RHi
Dimensions:
Width x Height x Depth: 132 x 295 x 132 mm
Application:
- Automotive Industry
- Chemical Industry
- Cutting
- Manufacturing Industry
- Petrochemical Industry
- Pharmaceutical Industry
- Research & Development
- Welding
Class (purpose):
- Technical gases
Flow rate:
300 Nm³/h
Gas Quality:
up to 4.5
HP Gauge:
HP gauge scale:
0 to 50 Bar
Inlet Connection:
G 1 RHi
Inlet pressure:
50 Bar
Material:
Brass
Outlet Connection:
G 1 RHi
Outlet pressure:
50 Bar
Product type:
Line Pressure Regulators
Regulation Type:
Single stage
Type of Gas:
Helium (He)
W (Width) x H (Height) x D (Depth):
132x295x132mm.
