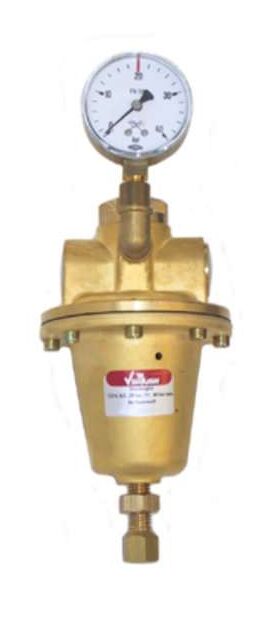

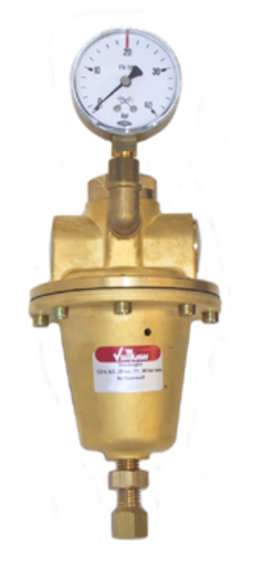

Vulkan LH25HF1 hydrogen line pressure reducer G1 1/4RHi both sides 0.5 - 25 bar
Standards & Design:
single-stage design with safety pressure gauge according to DIN ISO 5171, max
Technical data:
• outlet pressure: 0 - 25 bar adjustable, max
• output: 550 Nm³/h compressed air at 25 bar outlet pressure
• Inlet: G 1 1/4RH internal thread, outlet: G 1 1/4RH internal thread, outlet pressure gauge: 0 - 60/40 bar, height x width x depth: 250 x 130 x 145 mm
• outlet: G 1 1/4RH internal thread, outlet pressure gauge: 0 - 60/40 bar, height x width x depth: 250 x 130 x 145 mm
• outlet pressure gauge: 0 - 60/40 bar, height x width x depth: 250 x 130 x 145 mm
Dimensions:
width x depth: 250 x 130 x 145 mm
Standards & Design:
single-stage design with safety pressure gauge according to DIN ISO 5171, max
Technical data:
• outlet pressure: 0 - 25 bar adjustable, max
• output: 550 Nm³/h compressed air at 25 bar outlet pressure
• Inlet: G 1 1/4RH internal thread, outlet: G 1 1/4RH internal thread, outlet pressure gauge: 0 - 60/40 bar, height x width x depth: 250 x 130 x 145 mm
• outlet: G 1 1/4RH internal thread, outlet pressure gauge: 0 - 60/40 bar, height x width x depth: 250 x 130 x 145 mm
• outlet pressure gauge: 0 - 60/40 bar, height x width x depth: 250 x 130 x 145 mm
Dimensions:
width x depth: 250 x 130 x 145 mm
Application:
- Automotive Industry
- Chemical Industry
- Cutting
- Manufacturing Industry
- Petrochemical Industry
- Pharmaceutical Industry
- Research & Development
- Welding
Class (purpose):
- Technical gases
Flow rate:
550 Nm³/h
Gas Quality:
up to 4.5
Inlet Connection:
G 1 1/4 RHi
Inlet pressure:
40 Bar
LP Gauge:
LP gauge scale:
0 to 60 Bar
Material:
Brass
Outlet Connection:
G 1 1/4 RHi
Outlet pressure:
25 Bar
Product type:
Line Pressure Regulators
Regulation Type:
Single stage
Type of Gas:
Hydrogen (H2)
