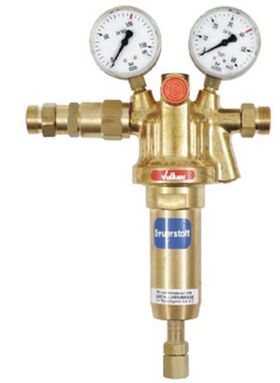

Line pressure reducer Vulkan LH25HF Helium G1RHi both sides. 0.5 - 25 bar with safety pressure gauge EN562, Max. inlet pressure: 40 bar
Technical data:
• Outlet pressure: 0 - 25 bar adjustable, Max
• output: 300 Nm³/h air at 25 bar outlet pressure, Inlet and outlet: internal thread G1RHi, Outlet pressure gauge: 0 - 60 / 40 bar, Width x Height x Depth: 200 x 210 x 120 mm
• outlet: internal thread G1RHi, Outlet pressure gauge: 0 - 60 / 40 bar, Width x Height x Depth: 200 x 210 x 120 mm
• Outlet pressure gauge: 0 - 60 / 40 bar, Width x Height x Depth: 200 x 210 x 120 mm
Dimensions:
Width x Height x Depth: 200 x 210 x 120 mm
Technical data:
• Outlet pressure: 0 - 25 bar adjustable, Max
• output: 300 Nm³/h air at 25 bar outlet pressure, Inlet and outlet: internal thread G1RHi, Outlet pressure gauge: 0 - 60 / 40 bar, Width x Height x Depth: 200 x 210 x 120 mm
• outlet: internal thread G1RHi, Outlet pressure gauge: 0 - 60 / 40 bar, Width x Height x Depth: 200 x 210 x 120 mm
• Outlet pressure gauge: 0 - 60 / 40 bar, Width x Height x Depth: 200 x 210 x 120 mm
Dimensions:
Width x Height x Depth: 200 x 210 x 120 mm
Application:
- Automotive Industry
- Chemical Industry
- Cutting
- Manufacturing Industry
- Petrochemical Industry
- Pharmaceutical Industry
- Research & Development
- Welding
Class (purpose):
- Technical gases
Flow rate:
300 Nm³/h
Gas Quality:
up to 4.5
Inlet Connection:
G 1 RHi
Inlet pressure:
40 Bar
LP Gauge:
LP gauge scale:
0 to 60 Bar
Material:
Brass
Outlet Connection:
G 1/2 RHak (according to EN 560)
Outlet pressure:
25 Bar
Product type:
Line Pressure Regulators
Regulation Type:
Single stage
Type of Gas:
Helium (He)
W (Width) x H (Height) x D (Depth):
200x210x120mm.
