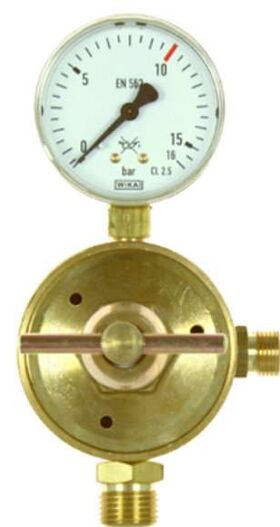

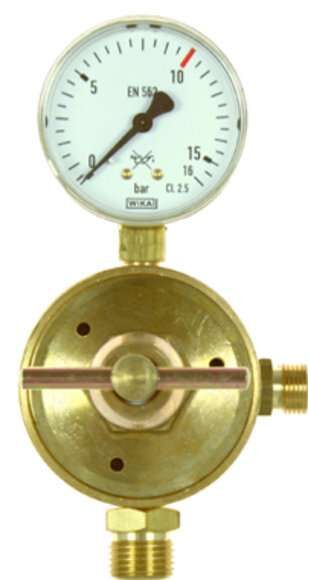

Working pressure reducer Vulkan AD 35 nitrogen 0 - 10 bar for AM 35, single-stage design, with safety pressure gauge according to DIN EN ISO 5171. Maximum inlet pressure: 20 bar. Output pressure: 0 - 10 bar, adjustable. Maximum output: 50 Nm³/h air at 10 bar outlet pressure. Inlet: G1/2" male thread, threaded connection according to DIN EN 560. Outlet: G3/8" male thread, threaded connection according to DIN EN 560. Outlet pressure gauge: 0 - 16/10 bar. Width x Height x Depth: 89 x 166 x 134 mm. This line pressure reducer is available in the following versions: Gas purity/diaphragm: Standard: - for technical gases up to a gas purity of 4.5 with a standard diaphragm. Optional (surcharge): - for pure gases up to a gas purity of 5.0 with a stainless steel diaphragm. SS321 (1.4541)
Application:
- Automotive Industry
- Chemical Industry
- Cutting
- Manufacturing Industry
- Petrochemical Industry
- Pharmaceutical Industry
- Research & Development
- Welding
Blow-off valve:
Class (purpose):
- Technical gases
Flow rate:
50 Nm³/h
Flowmeter:
Gas Quality:
up to 4.5
HP Gauge:
Inlet Connection:
G 1/2 RHak (according to EN 560)
Inlet pressure:
20 Bar
LP Gauge:
LP gauge scale:
0 to 16 Bar
Material:
Brass
Non-return valve:
Outlet Connection:
G 3/8 RHak (according to EN 560)
Outlet pressure:
10 Bar
Product type:
Line Pressure Regulators
Purge valve:
Regulation Type:
Single stage
Relief valve:
Shut off valve:
Solenoid valve:
Type of Gas:
Nitrogen (N2)
W (Width) x H (Height) x D (Depth):
89x166x134mm.
Outlet pressure:
10Bar
| CODE | Gas Quality | Outlet pressure | Type of Gas | Inlet Connection | Outlet Connection | Inlet pressure | Material | Availability | Price | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
|
108022-002
|
|
|||||||||
|
107022-001
|
|
|||||||||
|
10602226-001
|
|
|||||||||
|
106022-001
|
|
|||||||||
|
104022-002
|
|
|||||||||
|
103022-001
|
|
|||||||||
|
108022-001
|
|
|||||||||
|
107022-002
|
|
|||||||||
|
10602226-002
|
|
|||||||||
|
106022-002
|
|
|||||||||
|
104022-001
|
|
|||||||||
|
103022-002
|
|
