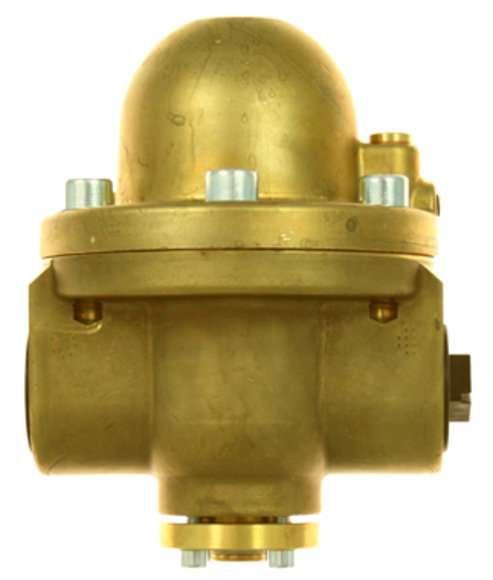

Vulkan L15 line pressure reducer for fuel gases G1/2RH, 0 - 1.5 bar
Standards & Design:
single-stage design, with safety pressure gauges according to DIN ISO 5171, maximum inlet pressure: 20 bar, output pressure: 0 to 1
according to EN 560, output: external thread G1/2RH according to EN 560, input pressure gauge: 0 to 40/20 bar, output pressure gauge: 0 to 2
Technical data:
• maximum inlet pressure: 20 bar, output pressure: 0 to 1
• outlet pressure, input: external thread G1/2RH according to EN 560, output: external thread G1/2RH according to EN 560, input pressure gauge: 0 to 40/20 bar, output pressure gauge: 0 to 2
• output pressure: 0 to 1
Dimensions:
width x height x depth: 200 x 200 x 75 mm
Standards & Design:
single-stage design, with safety pressure gauges according to DIN ISO 5171, maximum inlet pressure: 20 bar, output pressure: 0 to 1
according to EN 560, output: external thread G1/2RH according to EN 560, input pressure gauge: 0 to 40/20 bar, output pressure gauge: 0 to 2
Technical data:
• maximum inlet pressure: 20 bar, output pressure: 0 to 1
• outlet pressure, input: external thread G1/2RH according to EN 560, output: external thread G1/2RH according to EN 560, input pressure gauge: 0 to 40/20 bar, output pressure gauge: 0 to 2
• output pressure: 0 to 1
Dimensions:
width x height x depth: 200 x 200 x 75 mm
Type of Gas:
Carbon Dioxide (CO2)
Product type:
Line Pressure Regulators
Regulation Type:
Single stage
Inlet pressure (max):
100 Bar
Outlet pressure:
0 - 40 Bar
Gas Quality:
up to 4.5 (technical gases)
Flow rate:
2400 Nm³/h
Inlet Connection:
G 1 RHi
Outlet Connection:
G 1 RHi
Application:
- Automotive Industry
- Chemical Industry
- Cutting
- Manufacturing Industry
- Petrochemical Industry
- Pharmaceutical Industry
- Research & Development
- Welding
Class (purpose):
- Technical gases
Material:
Brass
HP gauge scale:
0 to 160 Bar
LP gauge scale:
0 to 60 Bar
W (Width) x H (Height) x D (Depth):
200x200x75mm.
