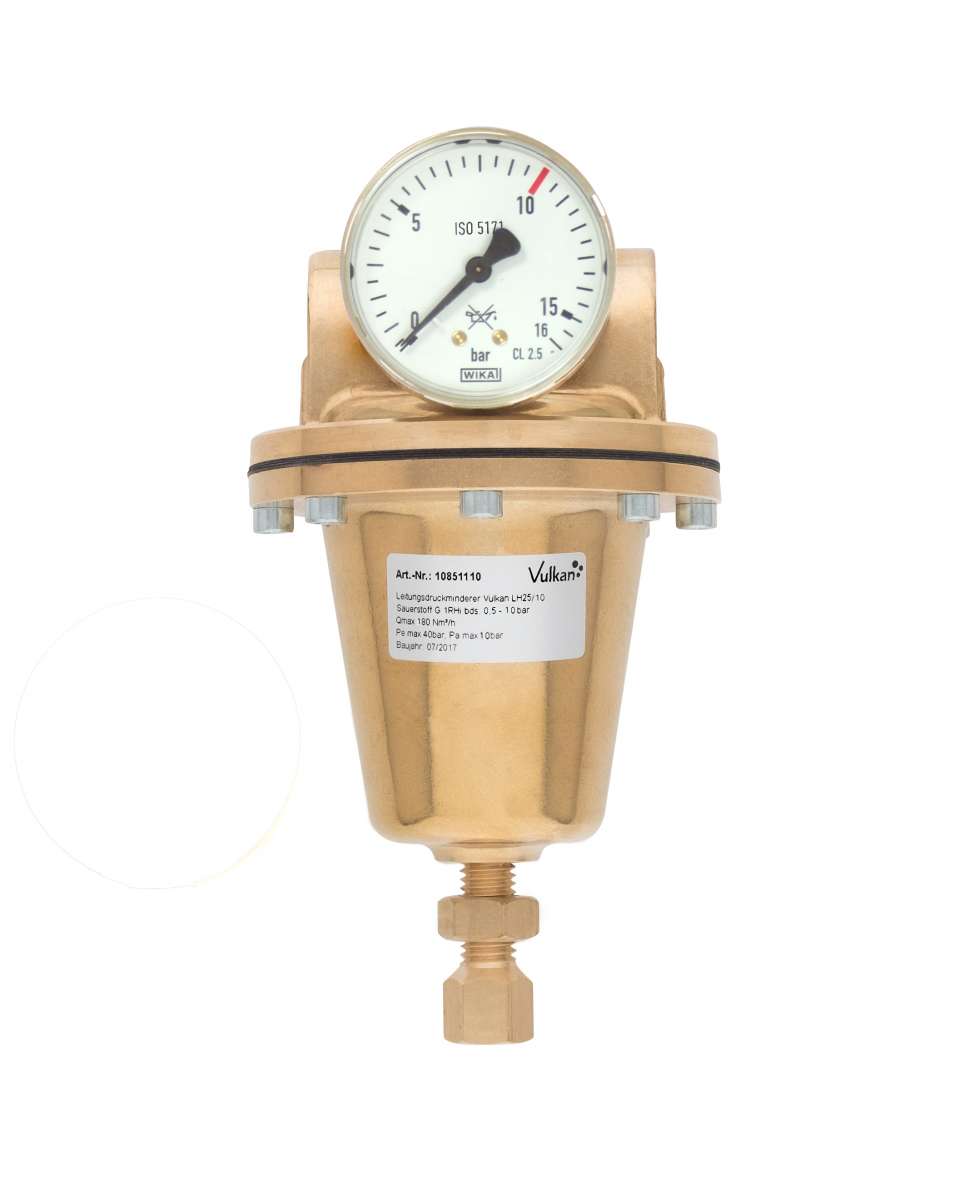

Line pressure reducer Vulkan LH25/10 fuel gas 0.5 - 10 bar with safety pressure gauge ISO 5171, Max. inlet pressure: 40 bar
Technical data:
• outlet pressure: 0
• output: 180 Nm?/h compressed air at 10 bar outlet pressure, inlet: internal thread G1RH, outlet: internal thread G1RH, outlet pressure gauge: 0-16/10 axial, width x height x depth: 200 x 210 x 120 mm
• inlet: internal thread G1RH, outlet: internal thread G1RH, outlet pressure gauge: 0-16/10 axial, width x height x depth: 200 x 210 x 120 mm
• outlet: internal thread G1RH, outlet pressure gauge: 0-16/10 axial, width x height x depth: 200 x 210 x 120 mm
• outlet pressure gauge: 0-16/10 axial, width x height x depth: 200 x 210 x 120 mm
Dimensions:
width x height x depth: 200 x 210 x 120 mm
Technical data:
• outlet pressure: 0
• output: 180 Nm?/h compressed air at 10 bar outlet pressure, inlet: internal thread G1RH, outlet: internal thread G1RH, outlet pressure gauge: 0-16/10 axial, width x height x depth: 200 x 210 x 120 mm
• inlet: internal thread G1RH, outlet: internal thread G1RH, outlet pressure gauge: 0-16/10 axial, width x height x depth: 200 x 210 x 120 mm
• outlet: internal thread G1RH, outlet pressure gauge: 0-16/10 axial, width x height x depth: 200 x 210 x 120 mm
• outlet pressure gauge: 0-16/10 axial, width x height x depth: 200 x 210 x 120 mm
Dimensions:
width x height x depth: 200 x 210 x 120 mm
Application:
- Automotive Industry
- Chemical Industry
- Cutting
- Manufacturing Industry
- Petrochemical Industry
- Pharmaceutical Industry
- Research & Development
- Welding
Class (purpose):
- Technical gases
Flow rate:
180 Nm³/h
Gas Quality:
up to 4.5
Inlet Connection:
G 1 RHi
Inlet pressure:
40 Bar
LP Gauge:
LP gauge scale:
0 to 16 Bar
Material:
Brass
Outlet Connection:
G 1 RHi
Outlet pressure:
10 Bar
Product type:
Line Pressure Regulators
Regulation Type:
Single stage
Type of Gas:
Hydrogen (H2)
W (Width) x H (Height) x D (Depth):
200x210x120mm.
