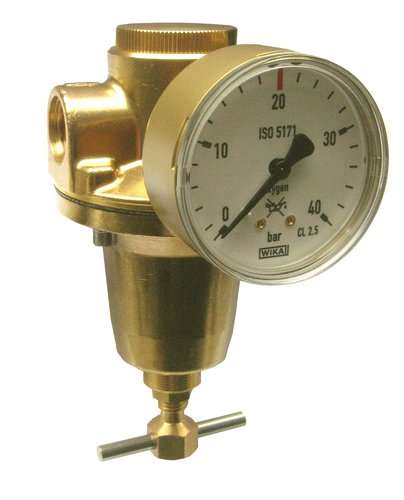

Line pressure regulator Vulkan LH40-35 Compressed air

Vulkan LH40 line pressure reducer for compressed air G1/2 RHi, 0.2-35 bar on both sides, with metal diaphragm for gas purity 5.0, with safety pressure gauge according to DIN EN ISO 5171. Inlet pressure: max. 40 bar. Outlet pressure: 0.2-35 bar adjustable. Maximum output: 230 Nm³/h air at 2 bar outlet pressure. Inlet: internal thread G1/2 RHi. Outlet: internal thread G1/2 RHi. Working pressure gauge: 0-6/4 bar axial. Width x Height x Depth: 90 x 180 x 90 mm. This line pressure reducer is available in the following versions, among others: Gas purity/diaphragm: Standard: - for pure gases up to a gas purity of 5.0 with stainless steel diaphragm SS321 (1.4541). Special outlet fittings: Standard: - internal thread G1/2" RHi on both sides. Options (Surcharge): Order number Gas purity/Membrane Inlet/outlet screw connection 11753035 for pure gases up to 5.0, with metal membrane SS321 (1.4541) on both sides. Internal thread G1/2" RHi 11753035-6M-6M for pure gases up to 5.0, with metal membrane SS321 (1.4541) on both sides. Compression fitting VA 6mm 11753035-8M-8M for pure gases up to 5.0, with metal membrane SS321 (1.4541) on both sides. Compression fitting VA 8mm 11753035-10M-10M for pure gases up to 5.0, with metal membrane SS321 (1.4541) on both sides. Compression fitting VA 10mm 11753035-12M-12M for pure gases up to 5.0, with metal membrane SS321 (1.4541) on both sides. 12mm stainless steel compression fitting. 11753035-15M-15M for pure gases up to 5.0, with metal membrane SS321 (1.4541) on both sides. 15mm stainless steel compression fitting. 11753035-18M-18M for pure gases up to 5.0, with metal membrane SS321 (1.4541) on both sides. 18mm stainless steel compression fitting.
