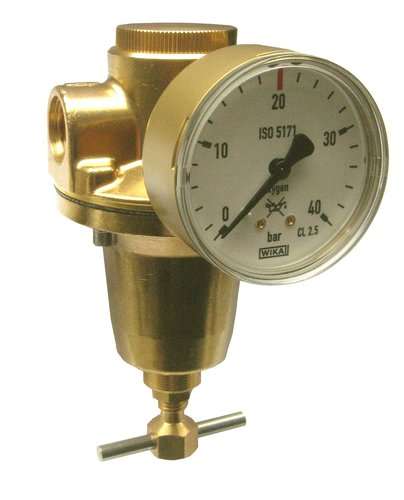

Line pressure regulator Vulkan LH40-35 Nitrogen mit metal diaphragm

Vulkan LH40 nitrogen line pressure reducer G1/2 RHi, 0.2-35 bar, with safety pressure gauge according to DIN EN ISO 5171, with metal diaphragm for gas purity 5.0. Inlet pressure: max. 40 bar. Outlet pressure: 0.2-35 bar, adjustable. Maximum output: 230 Nm³/h air at 2 bar outlet pressure. Inlet: internal thread G1/2 RHi. Outlet: internal thread G1/2 RHi. Working pressure gauge: 0-6/4 bar axial. Width x Height x Depth: 90 x 180 x 90 mm. This line pressure reducer is available in the following versions, among others: Gas purity/diaphragm: Standard: - for pure gases up to gas purity 5.0 with stainless steel diaphragm SS321 (1.4541). Special outlet fittings: Standard: - internal thread G1/2" RHi on both sides. Options (surcharge): Order number Gas purity/Membrane Inlet/outlet screw connection 11353035 for pure gases up to 5.0, with metal membrane SS321 (1.4541) on both sides. Internal thread G1/2" RHi 11353035-6M-6M for pure gases up to 5.0, with metal membrane SS321 (1.4541) on both sides. Compression fitting VA 6mm 11353035-8M-8M for pure gases up to 5.0, with metal membrane SS321 (1.4541) on both sides. Compression fitting VA 8mm 11353035-10M-10M for pure gases up to 5.0, with metal membrane SS321 (1.4541) on both sides. Compression fitting VA 10mm 11353035-12M-12M for pure gases up to 5.0, with metal membrane SS321 (1.4541) on both sides. 12mm stainless steel compression fitting. 11353035-15M-15M for pure gases up to 5.0, with metal membrane SS321 (1.4541) on both sides. 15mm stainless steel compression fitting. 11353035-18M-18M for pure gases up to 5.0, with metal membrane SS321 (1.4541) on both sides. 18mm stainless steel compression fitting.
