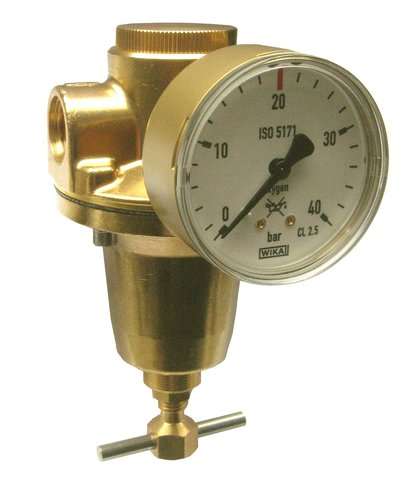

Vulkan LH40 line pressure reducer for compressed air G1/2 RHi both sides 0.5 - 16 bar with safety pressure gauge
Standards & Design:
according to DIN EN ISO 5171
Technical data:
• Outlet pressure: 0
• output: 150 Nm³/h air at 16 bar outlet pressure
• Inlet: internal thread G1/2 RHi
• Outlet: internal thread G1/2 RHi
Dimensions:
Width x Height x Depth: 90 x 180 x 90 mm
Standards & Design:
according to DIN EN ISO 5171
Technical data:
• Outlet pressure: 0
• output: 150 Nm³/h air at 16 bar outlet pressure
• Inlet: internal thread G1/2 RHi
• Outlet: internal thread G1/2 RHi
Dimensions:
Width x Height x Depth: 90 x 180 x 90 mm
Application:
- Automotive Industry
- Chemical Industry
- Cutting
- Manufacturing Industry
- Petrochemical Industry
- Pharmaceutical Industry
- Research & Development
- Welding
Flow rate:
150 Nm³/h
HP Gauge:
HP gauge scale:
0 to 16 Bar
Inlet pressure:
25 Bar
Material:
Brass
Outlet pressure:
15 Bar
Product type:
Line Pressure Regulators
Regulation Type:
Single stage
Type of Gas:
Compressed Air (mixture)
W (Width) x H (Height) x D (Depth):
90x180x90mm.
