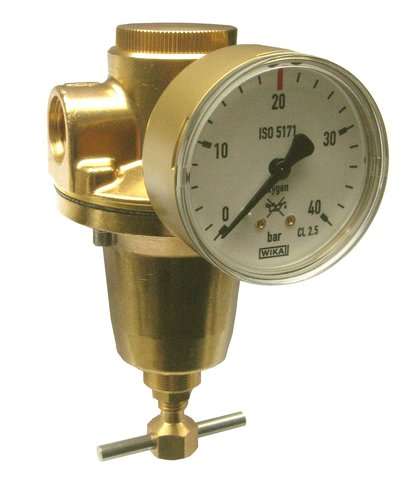

Vulkan LH40 line pressure reducer nitrogen G1/2RHi both sides 0.5 - 16 bar with safety pressure gauge
Standards & Design:
according to DIN EN ISO 5171, Inlet pressure: max
Technical data:
• Outlet pressure: 0
• output: 150 Nm³/h air at 16 bar outlet pressure
• Inlet: internal thread G1/2 RHi, Outlet: internal thread G1/2 RHi, Working pressure gauge: 0 - 16/10 bar axial, Width x Height x Depth: 90 x 180 x 90 mm
• Outlet: internal thread G1/2 RHi, Working pressure gauge: 0 - 16/10 bar axial, Width x Height x Depth: 90 x 180 x 90 mm
Dimensions:
Width x Height x Depth: 90 x 180 x 90 mm
Standards & Design:
according to DIN EN ISO 5171, Inlet pressure: max
Technical data:
• Outlet pressure: 0
• output: 150 Nm³/h air at 16 bar outlet pressure
• Inlet: internal thread G1/2 RHi, Outlet: internal thread G1/2 RHi, Working pressure gauge: 0 - 16/10 bar axial, Width x Height x Depth: 90 x 180 x 90 mm
• Outlet: internal thread G1/2 RHi, Working pressure gauge: 0 - 16/10 bar axial, Width x Height x Depth: 90 x 180 x 90 mm
Dimensions:
Width x Height x Depth: 90 x 180 x 90 mm
Type of Gas:
Nitrogen (N2)
Product type:
Line Pressure Regulators
Regulation Type:
Single stage
Inlet pressure (max):
25 Bar
Outlet pressure:
0 - 15 Bar
Gas Quality:
up to 4.5 (technical gases)
Flow rate:
150 Nm³/h
Inlet Connection:
G 1/2 RHi
Outlet Connection:
G 1/2 RHi
Application:
- Automotive Industry
- Chemical Industry
- Cutting
- Manufacturing Industry
- Petrochemical Industry
- Pharmaceutical Industry
- Research & Development
- Welding
Class (purpose):
- Technical gases
Material:
Brass
HP Gauge:
HP gauge scale:
0 to 16 Bar
W (Width) x H (Height) x D (Depth):
90x180x90mm.
