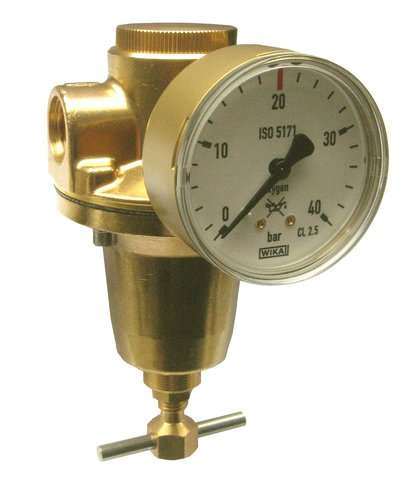

Vulkan LH40 line pressure reducer for inert gas G1/2 RHi both sides 0.5 - 16 bar with safety pressure gauge
Standards & Design:
according to DIN EN ISO 5171
Technical data:
• Outlet pressure: 0
• output: 150 Nm³/h air at 16 bar outlet pressure
• Inlet: internal thread G1/2 RHi
• Outlet: internal thread G1/2 RHi
Dimensions:
Width x Height x Depth: 90 x 180 x 90 mm
Standards & Design:
according to DIN EN ISO 5171
Technical data:
• Outlet pressure: 0
• output: 150 Nm³/h air at 16 bar outlet pressure
• Inlet: internal thread G1/2 RHi
• Outlet: internal thread G1/2 RHi
Dimensions:
Width x Height x Depth: 90 x 180 x 90 mm
Application:
- Automotive Industry
- Chemical Industry
- Cutting
- Manufacturing Industry
- Petrochemical Industry
- Pharmaceutical Industry
- Research & Development
- Welding
Class (purpose):
- Technical gases
Flow rate:
150 Nm³/h
Gas Quality:
up to 4.5
HP Gauge:
HP gauge scale:
0 to 16 Bar
Inlet Connection:
G 1/2 RHi
Inlet pressure:
25 Bar
Material:
Brass
Outlet Connection:
G 1/2 RHi
Outlet pressure:
15 Bar
Product type:
Line Pressure Regulators
Regulation Type:
Single stage
Type of Gas:
Carbon Dioxide (CO2)
W (Width) x H (Height) x D (Depth):
90x180x90mm.
