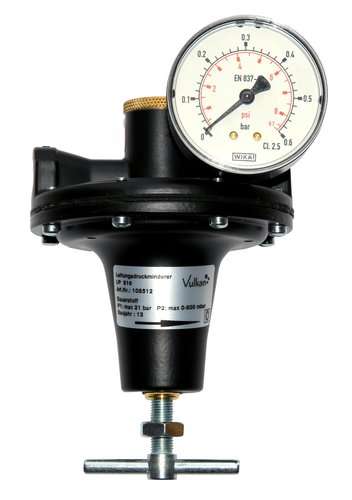

Line pressure reducer Vulkan LP216-1.6 oxygen G3/8RHi 0.01-1.6 bar
Standards & Design:
single-stage design, with safety pressure gauges according to DIN ISO 5171, maximum inlet pressure: 21 bar, output pressure: 0
Technical data:
• maximum inlet pressure: 21 bar, output pressure: 0
• output pressure: 0
Dimensions:
width x height x depth: 108 x 162 x 108 mm
Standards & Design:
single-stage design, with safety pressure gauges according to DIN ISO 5171, maximum inlet pressure: 21 bar, output pressure: 0
Technical data:
• maximum inlet pressure: 21 bar, output pressure: 0
• output pressure: 0
Dimensions:
width x height x depth: 108 x 162 x 108 mm
Type of Gas:
Nitrogen (N2)
Product type:
Line Pressure Regulators
Regulation Type:
Single stage
Inlet pressure (max):
20 Bar
Outlet pressure:
0 - 1,5 Bar
Gas Quality:
up to 4.5 (technical gases)
Flow rate:
50 Nm³/h
Inlet Connection:
G 3/8 RHi
Outlet Connection:
G 3/8 RHi
Application:
- Automotive Industry
- Chemical Industry
- Cutting
- Manufacturing Industry
- Petrochemical Industry
- Pharmaceutical Industry
- Research & Development
- Welding
Class (purpose):
- Technical gases
Material:
Brass
W (Width) x H (Height) x D (Depth):
108x162x108mm.
