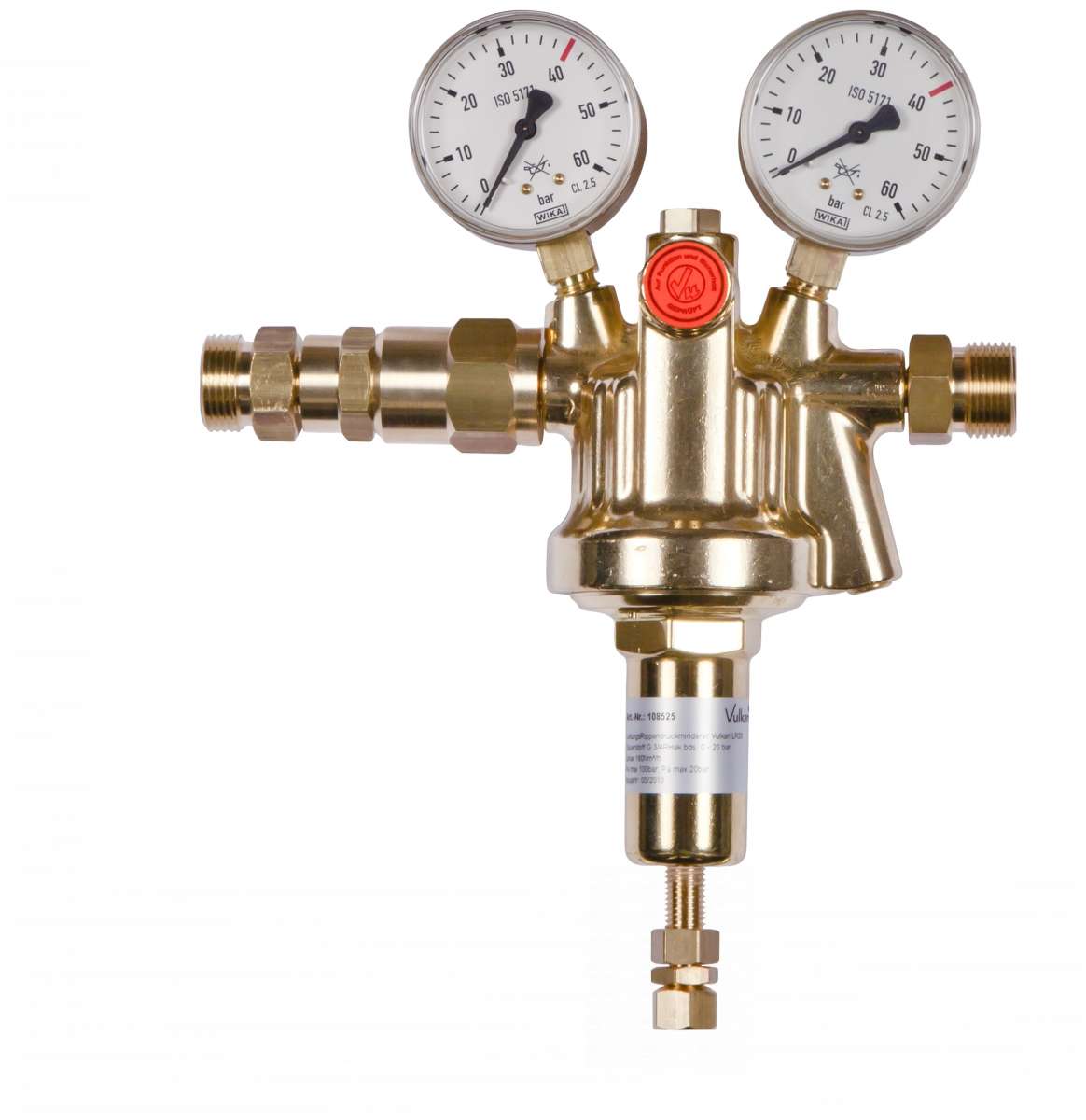

Line ribbed regulator Vulkan LR40 Effect, 15-40 bar

Vulkan LR40 Effect Helium in-line ribbed pressure reducer, 15-40 bar based on ISO 7291, single-stage design, with pre-pressure compensation for constant downstream pressure with falling upstream pressure, with safety gauges according to ISO 5171, with metal diaphragm, maximum inlet pressure: 100 bar, outlet pressure: 15-40 bar, adjustable, maximum output: 280 Nm³/h compressed air at 40 bar downstream pressure. Inlet: external thread G3/4RHak - EN 560, Outlet: external thread G3/4RHak - EN 560, input pressure gauge: 0-160/100 bar, output pressure gauge: 0-60/40 bar, width x height x depth: 220 x 280 x 85 mm. This in-line ribbed pressure reducer is available in the following versions, among others: Gas purity/membrane: Standard: - for technical gases up to a gas purity of 4.5 with standard membrane Optional (surcharge): - for pure gases up to a gas purity of 5.0 with stainless steel membrane SS321 (1.4541) Special outlet screw connection: Standard: - external thread G3/4" RHak on both sides according to EN 560 Options (surcharge): Order number Gas purity/membrane Inlet/outlet screw connection 10664626 for technical gases up to 4.5, with standard membrane on both sides. external thread G3/4" RHak according to EN 560 10664626-6M-6M for technical gases up to 4.5, with standard membrane on both sides. Compression fitting VA 6mm 10664626-8M-8M for technical gases up to 4.5, with standard membrane on both sides. Compression fitting VA 8mm 10664626-10M-15M for technical gases up to 4.5, with standard membrane on both sides. Compression fitting VA 10mm 10664626-12M-15M for technical gases up to 4.5, with standard membrane on both sides. Compression fitting VA 12mm 10664626-15M-15M for technical gases up to 4.5, with standard membrane on both sides. Compression fitting VA 15mm 10664626-18M-18M for technical gases up to 4.5, with standard membrane on both sides. Compression fitting VA 18mm 10664626-MM for pure gases up to 5.0, with metal membrane SS321 (1.4541) on both sides. External thread G3/4" RHak according to EN 560 10664626-MM-6M-6M for pure gases up to 5.0, with metal membrane SS321 (1.4541) on both sides. 6mm stainless steel compression fitting. 10664626-MM-8M-8M for pure gases up to 5.0, with metal membrane SS321 (1.4541) on both sides. 8mm stainless steel compression fitting. 10664626-MM-10M-10M for pure gases up to 5.0, with metal membrane SS321 (1.4541) on both sides. 10mm stainless steel compression fitting. 10664626-MM-12M-12M for pure gases up to 5.0, with metal membrane SS321 (1.4541) on both sides. 12mm stainless steel compression fitting. 10664626-MM-15M-15M for pure gases up to 5.0, with metal diaphragm SS321 (1.4541) on both sides. 15mm stainless steel compression fitting. 10664626-MM-18M-18M for pure gases up to 5.0, with metal diaphragm SS321 (1.4541) on both sides. 18mm stainless steel compression fitting.
