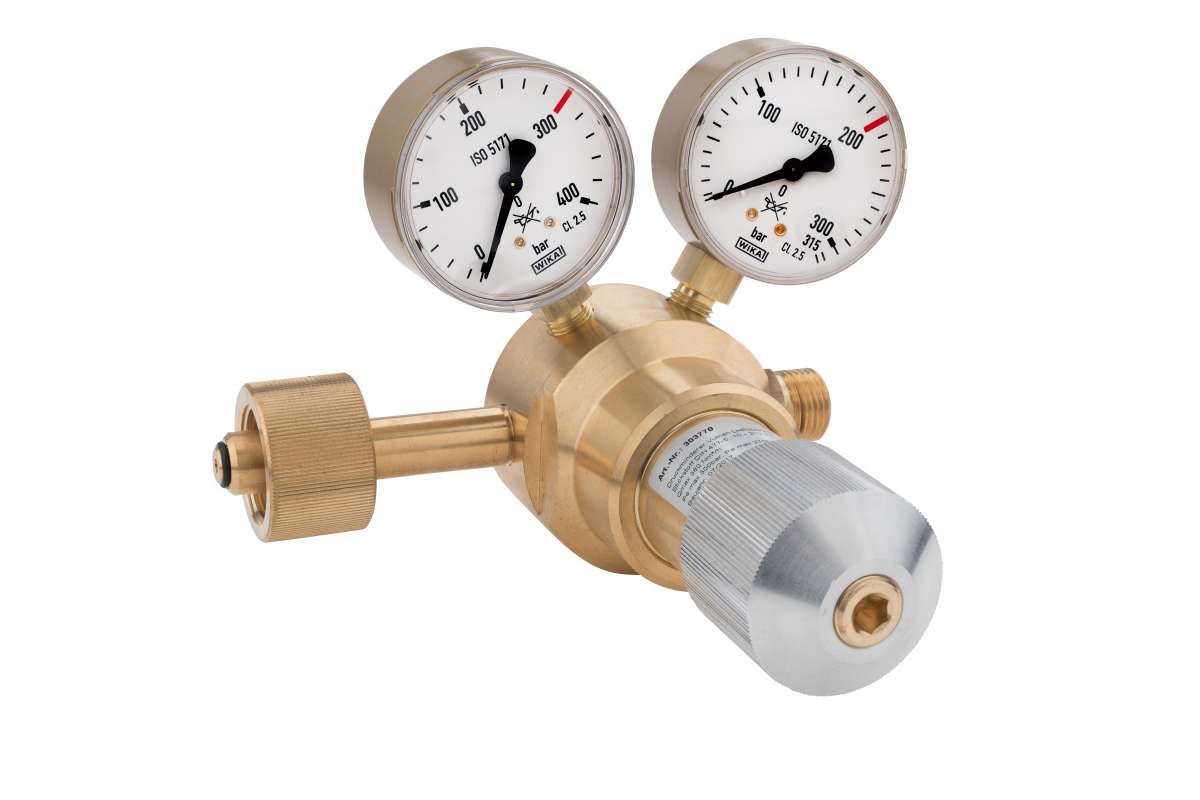

Main and line pressure regulator CO₂/Argon mixture 0-200 bar Vulkan LHR300/200 BSP

Vulkan LHR 300/200 BSP cylinder pressure reducer for inert gases DIN 477-5, 10 - 200 bar according to ISO 2503, single-stage design, with safety pressure gauges according to DIN EN ISO 5171. Maximum inlet pressure: 300 bar. Adjustable outlet pressure: 10 - 200 bar. Output: 380 Nm³/h (compressed air) at 50 bar outlet pressure and 300 bar inlet pressure. Inlet: W30x2RH U-nut according to DIN 477-5, Outlet: G1/2RHak according to EN 560. Inlet pressure gauge: 0 - 400/300 bar. Outlet pressure gauge: 0 - 315/200 bar. Width x Height x Depth: 150 x 210 x 120 mm. Important note for 300 bar pressure reducers - please check your cylinder connection! Cylinder pressure regulators for 300 bar have a manual connection according to DIN 477 Part 5 and are NOT backward compatible. This means they do NOT fit cylinders with a maximum filling pressure of 200 bar! If necessary, see our following tutorial, 3: Difference between 200 bar and 300 bar pressure regulators. This main and line pressure reducer is available in the following versions, among others: Special outlet screw connection: Standard:- G1/2RHak according to EN 560 Options (surcharge): Item numberOutlet connection 306770 G1/2RHak according to EN 560 306770-800 External thread G1/4" RHk according to EN560 306770-870 External thread G3/8" RHk according to EN 560 306770-6M Compression fitting VA 6mm 306770-8M Compression fitting VA 8mm 306770-10M Compression fitting VA 10mm 306770-12M Compression fitting VA 12mm 306770-15M Compression fitting VA 15mm 306770-18M compression fitting VA 18mm
