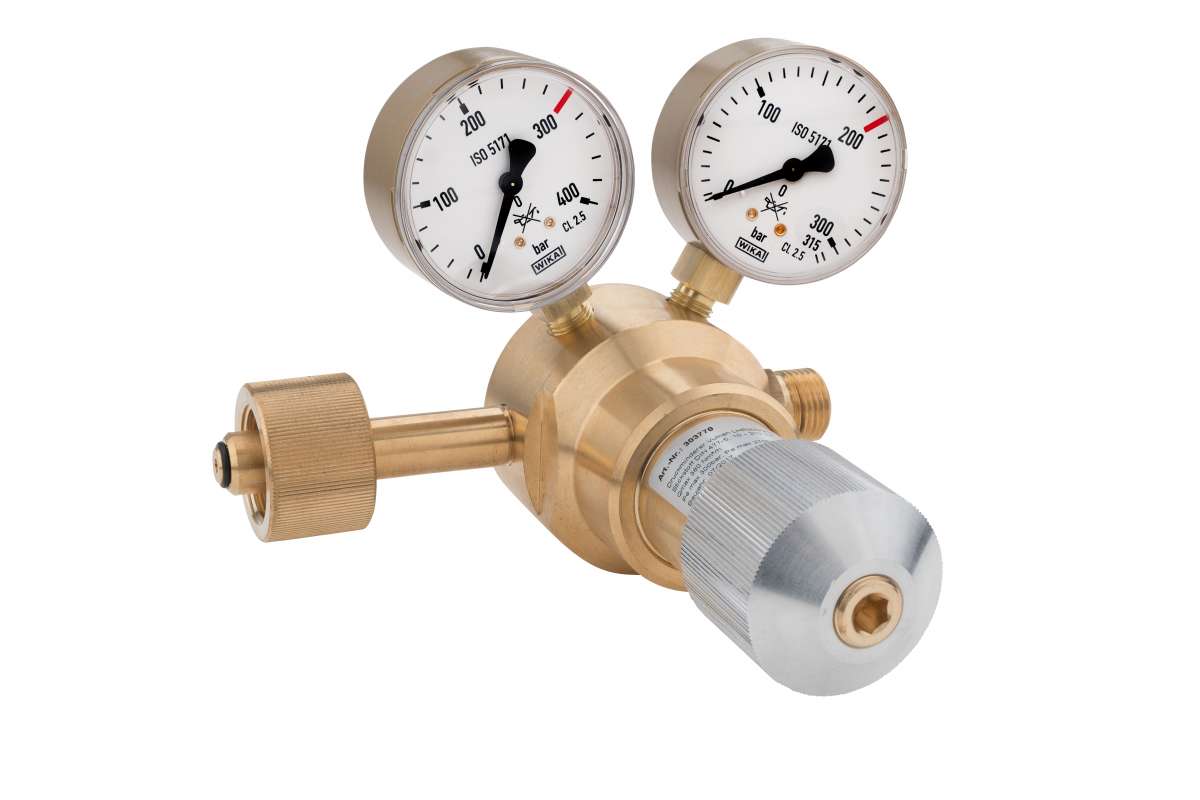

Vulkan LHR 200/100 BSP compressed air cylinder pressure reducer DIN 477-1, 10 - 100 bar according to ISO 2503, single-stage design, with safety pressure gauges according to DIN EN ISO 5171, maximum inlet pressure: 200 bar, outlet pressure: 10 - 100 bar adjustable, maximum output: 380 Nm³/h air at 50 bar outlet pressure, input: G5/8RHaf A-screw according to DIN 477-1, output: G1/2RHak according to EN560, input pressure gauge: 0 - 315/200 bar, output pressure gauge: 0 - 160/100 bar, width x height x depth: 180 x 140 x 190 mm. This main and line pressure reducer is available in the following versions, among others: Special outlet screw connection: Standard:- G1/2RHak according to EN 560 Options (surcharge): Item numberOutput connection 207760 G1/2RHak according to EN 560 207760-800 External thread G1/4" RHk according to EN560 207760-870 External thread G3/8" RHk according to EN 560 207760-6M Compression fitting VA 6mm 207760-8M Compression fitting VA 8mm 207760-10M Compression fitting VA 10mm 207760-12M Compression fitting VA 12mm 207760-15M Compression fitting VA 15mm 207760-18M Compression fitting VA 18mm
Type of Gas:
Compressed Air (mixture)
Product type:
Main regulators
Regulation Type:
Single stage
Inlet pressure (max):
200 Bar
Outlet pressure:
0 - 100 Bar
Gas Quality:
up to 4.5 (technical gases)
Flow rate:
380 Nm³/h
Inlet Connection:
Compression ring fitting front 8 mm
Outlet Connection:
Compression ring fitting front 8 mm
Application:
- Automotive Industry
- Chemical Industry
- Cutting
- Manufacturing Industry
- Petrochemical Industry
- Pharmaceutical Industry
- Research & Development
- Welding
Material:
Brass
HP Gauge:
HP gauge scale:
0 to 315 Bar
LP Gauge:
LP gauge scale:
0 to 160 Bar
W (Width) x H (Height) x D (Depth):
180x140x190mm.
