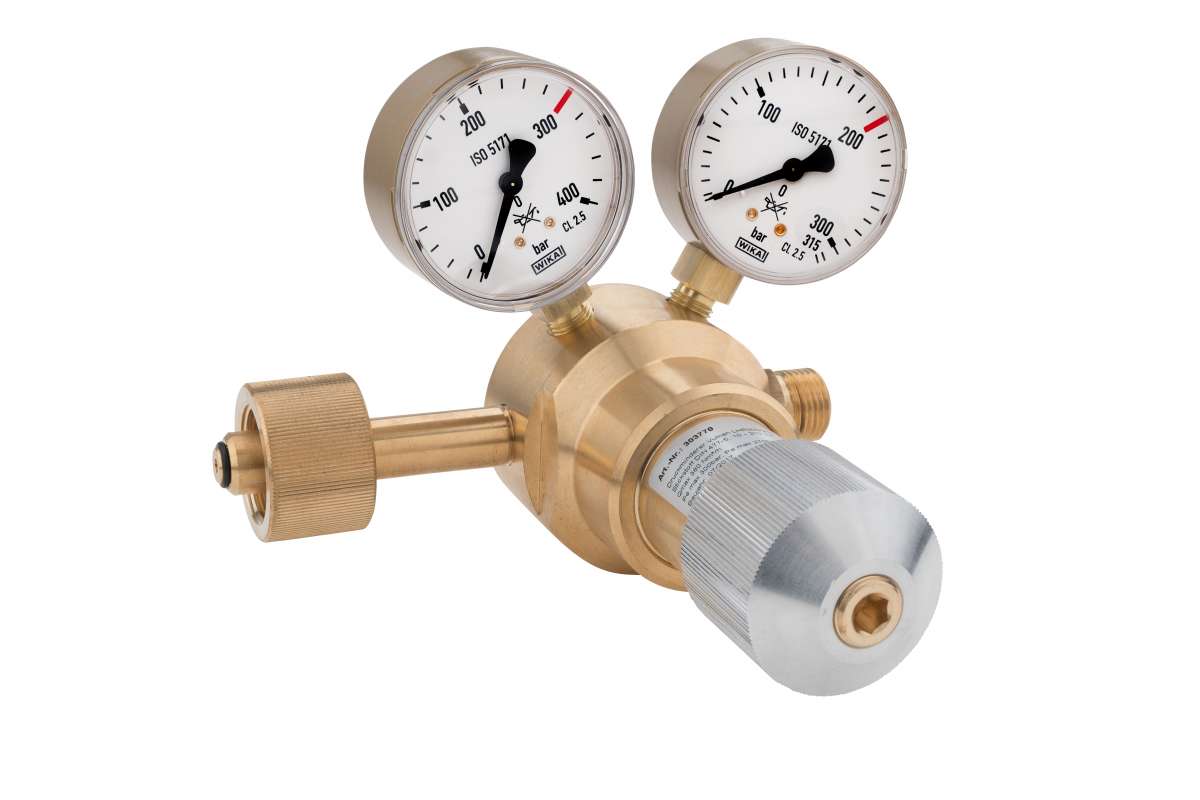

Main and line pressure regulator Compressed air 10-100 bar Vulkan LHR200/100 DIN

Main and line pressure reducer for compressed air 10-100 bar, Vulkan LHR200/100 DIN according to ISO 2503, single-stage design, with safety pressure gauges according to ISO 5171, maximum inlet pressure: 200 bar, adjustable outlet pressure: 10 - 100 bar, output: 380 Nm?/h (compressed air) at 50 bar outlet pressure and 100 bar pre-pressure, input: G5/8RHaf A-screw according to DIN 477-1, output: G5/8RHif according to DIN 477-1, input pressure gauge: 0 - 315/200 bar, output pressure gauge: 0 - 160/100 bar, width x height x depth: 150 x 210 x 120 mm. This main and line pressure reducer is available in the following versions, among others: Special outlet screw connection: Standard:- G1/2RHak according to EN 560 Options (surcharge): Item numberOutput connection 207766 G1/2RHak according to EN 560 207766-800 External thread G1/4" RHk according to EN560 207766-870 External thread G3/8" RHk according to EN 560 207766-6M Compression fitting VA 6mm 207766-8M Compression fitting VA 8mm 207766-10M Compression fitting VA 10mm 207766-12M Compression fitting VA 12mm 207766-15M Compression fitting VA 15mm 207766-18M Compression fitting VA 18mm
