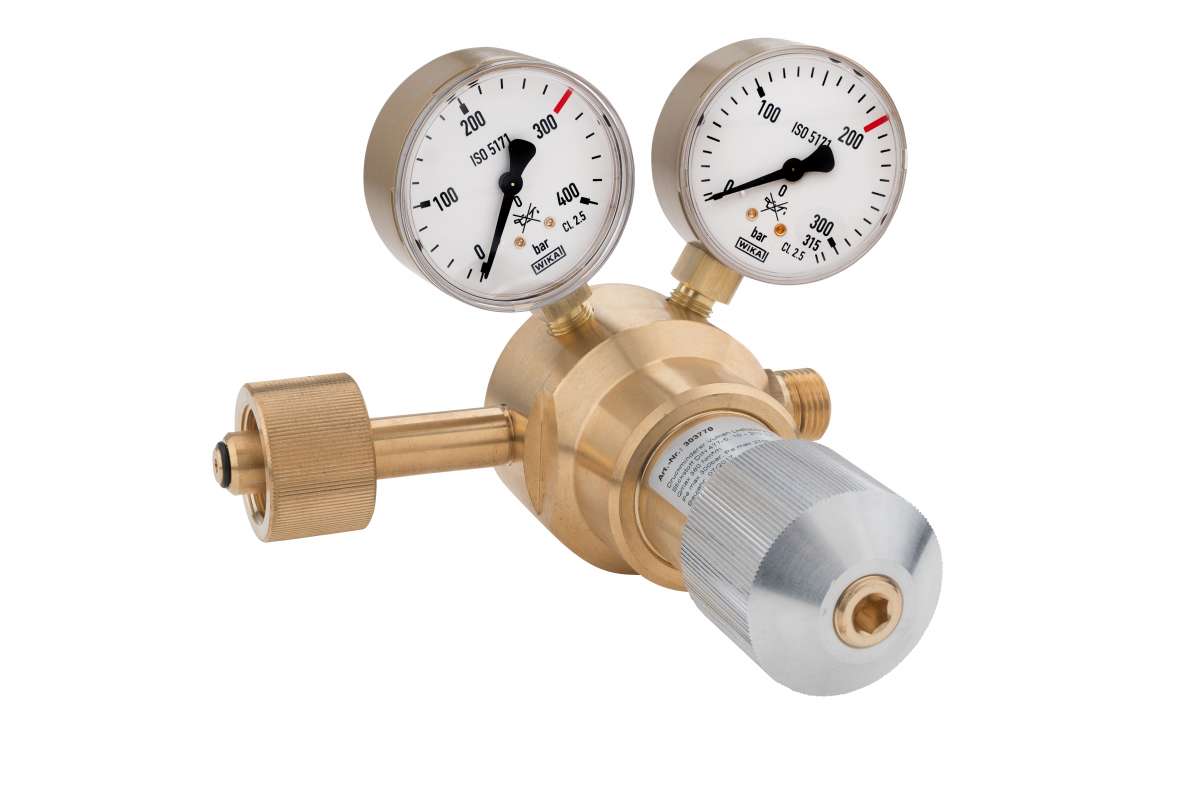

Main and line pressure regulator Fuel gas 10-200 bar Vulkan LHR300/200 DIN

Vulkan LHR 300/200 DIN cylinder pressure reducer for fuel gas according to DIN 477-5, 10 - 200 bar according to ISO 2503, single-stage design, with safety gauges according to DIN EN ISO 5171, maximum inlet pressure: 300 bar, adjustable outlet pressure: 10 - 200 bar, output: 380 Nm³/h (compressed air) at 50 bar outlet pressure and 300 bar pre-pressure, inlet: W 30 x 2 LH U-nut according to DIN 477 Part 5, outlet: W 21.8 x 1/14 LH according to DIN 477 Part 1, inlet pressure gauge: 0 - 400/300 bar, outlet pressure gauge: 0 - 315/200 bar, width x height x depth: 150 x 210 x 120 mm. Important note for 300 bar pressure reducers - please check. Check your cylinder connection! Cylinder pressure regulators for 300 bar have a manual connection according to DIN 477 Part 5 and are NOT backward compatible. This means they do NOT fit cylinders with a maximum filling pressure of 200 bar! If necessary, see our following tutorial, 3: Difference between 200 bar and 300 bar pressure regulators. This main and line pressure reducer is available in the following versions, among others: Special outlet screw connection: Standard:- G1/2RHak according to EN 560 Options (surcharge): Item numberOutlet connection 304775 G1/2RHak according to EN 560 304775-800 External thread G1/4" RHk according to EN560 304775-870 External thread G3/8" RHk according to EN 560 304775-6M Compression fitting VA 6mm 304775-8M Compression fitting VA 8mm 304775-10M Compression fitting VA 10mm 304775-12M Compression fitting VA 12mm 304775-15M Compression fitting VA 15mm 304775-18M compression fitting VA 18mm
