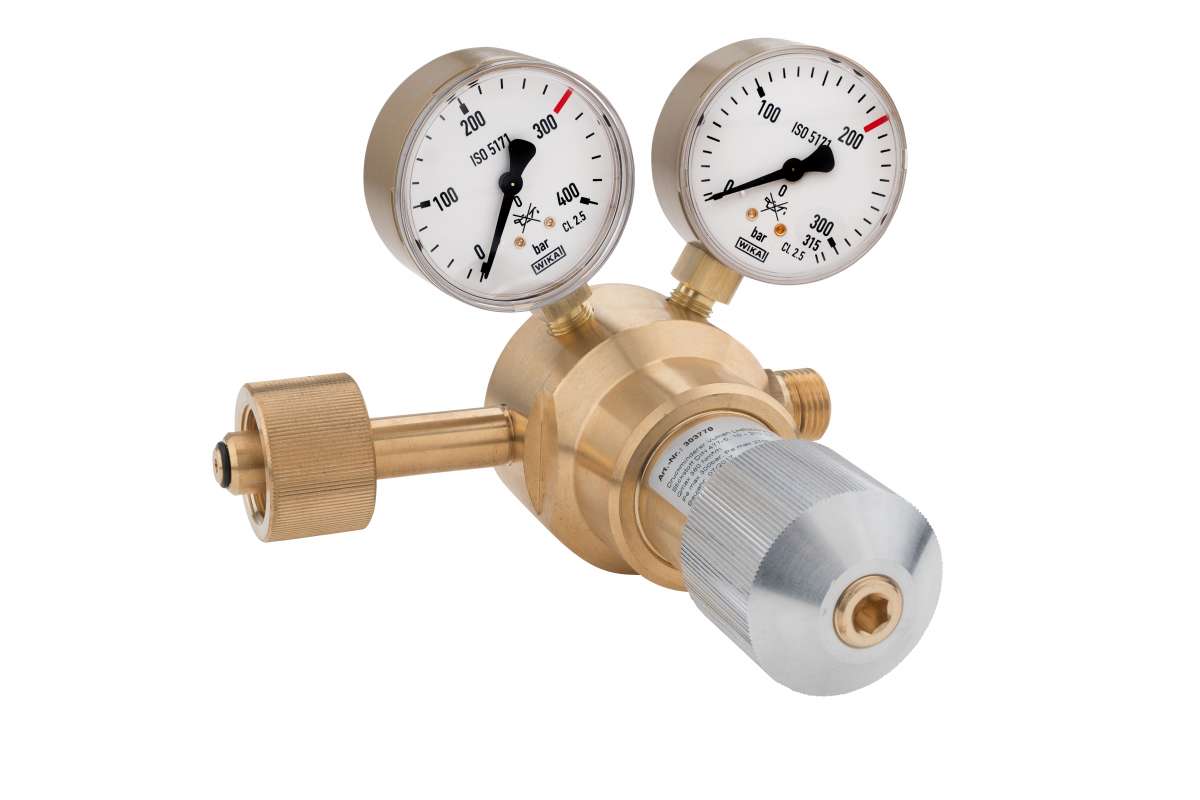

Main and line pressure regulator Helium 0-200 bar Vulkan LHR200/200 BSP

Cylinder pressure reducer Vulkan LHR 200/200 BSP Helium DIN 477-1, 10 - 200 bar according to ISO 2503, single-stage design, with safety pressure gauges according to DIN EN ISO 5171, Max. inlet pressure: 200 bar, Adjustable outlet pressure: 10 - 200 bar, Output: 380 Nm?/h air at 50 bar outlet pressure and 300 bar pre-pressure, Inlet: W21.8x1/14RHf U-nut according to DIN 477-1, Outlet: External thread G1/2RHak according to DIN EN 560, Inlet pressure gauge: 0 - 315/200 bar, Outlet pressure gauge: 0 - 315/200 bar, Width x Height x Depth: 150 x 210 x 120 mm. This main and line pressure reducer is suitable for, among other things, Available in the following versions: Special outlet screw connection: Standard:- G1/2RHak according to EN 560 Options (surcharge): Item numberOutlet connection 20677026 G1/2RHak according to EN 560 20677026-800 External thread G1/4" RHk according to EN560 20677026-870 External thread G3/8" RHk according to EN 560 20677026-6M Compression fitting VA 6mm 20677026-8M Compression fitting VA 8mm 20677026-10M Compression fitting VA 10mm 20677026-12M Compression fitting VA 12mm 20677026-15M Compression fitting VA 15mm 20677026-18M compression fitting VA 18mm
