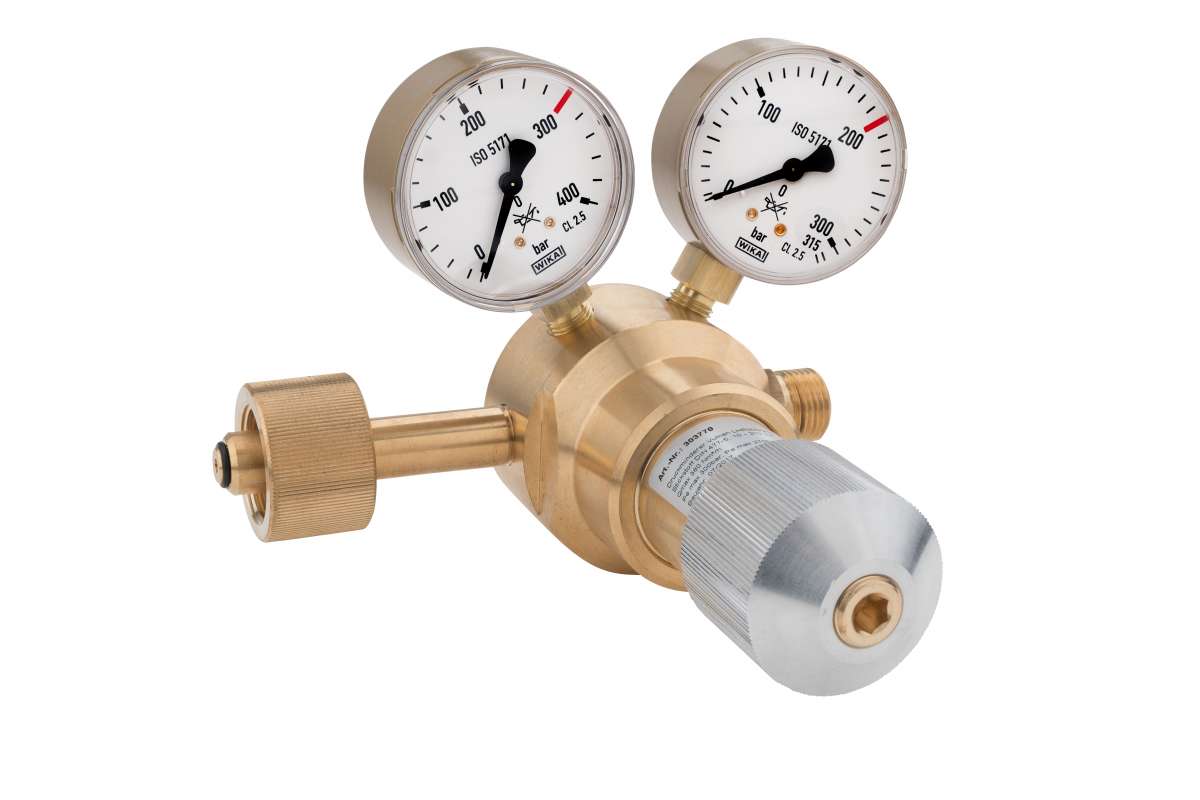

Main and line pressure regulator Hydrogen 0-100 bar Vulkan LHR300/100 BSP

Vulkan LHR 300/100 BSP cylinder pressure reducer for fuel gases DIN 477-5, 10 - 100 bar according to DIN EN ISO 2503, Class 3, single-stage design, with safety pressure gauges according to DIN EN ISO 5171. Maximum inlet pressure: 300 bar. Output pressure: 10 - 100 bar adjustable. Maximum output: 380 Nm?/h at 50 bar outlet pressure. Inlet connection: W30x2LH U-nut according to DIN 477. Outlet connection: G1/2RHak. Inlet pressure gauge: 0 - 400 / 300 bar. Outlet pressure gauge: 0 - 100 / 160 bar. Width x Height x Depth: 150 x 210 x 120 mm. Weight: approx. 1.2 kg. Important note for 300 bar pressure reducers - please check your cylinder connection! Cylinder pressure regulators for 300 bar have a manual connection according to DIN 477 Part 5 and are NOT backward compatible. This means they do NOT fit cylinders with a maximum filling pressure of 200 bar! If necessary, see our following tutorial, 3: Difference between 200 bar and 300 bar pressure regulators. This main and line pressure reducer is available in the following versions, among others: Special outlet screw connection: Standard:- G1/2RHak according to EN 560 Options (surcharge): Item numberOutlet connection 304760 G1/2RHak according to EN 560 304760-800 External thread G1/4" RHk according to EN560 304760-870 External thread G3/8" RHk according to EN 560 304760-6M Compression fitting VA 6mm 304760-8M Compression fitting VA 8mm 304760-10M Compression fitting VA 10mm 304760-12M Compression fitting VA 12mm 304760-15M Compression fitting VA 15mm 304760-18M compression fitting VA 18mm
