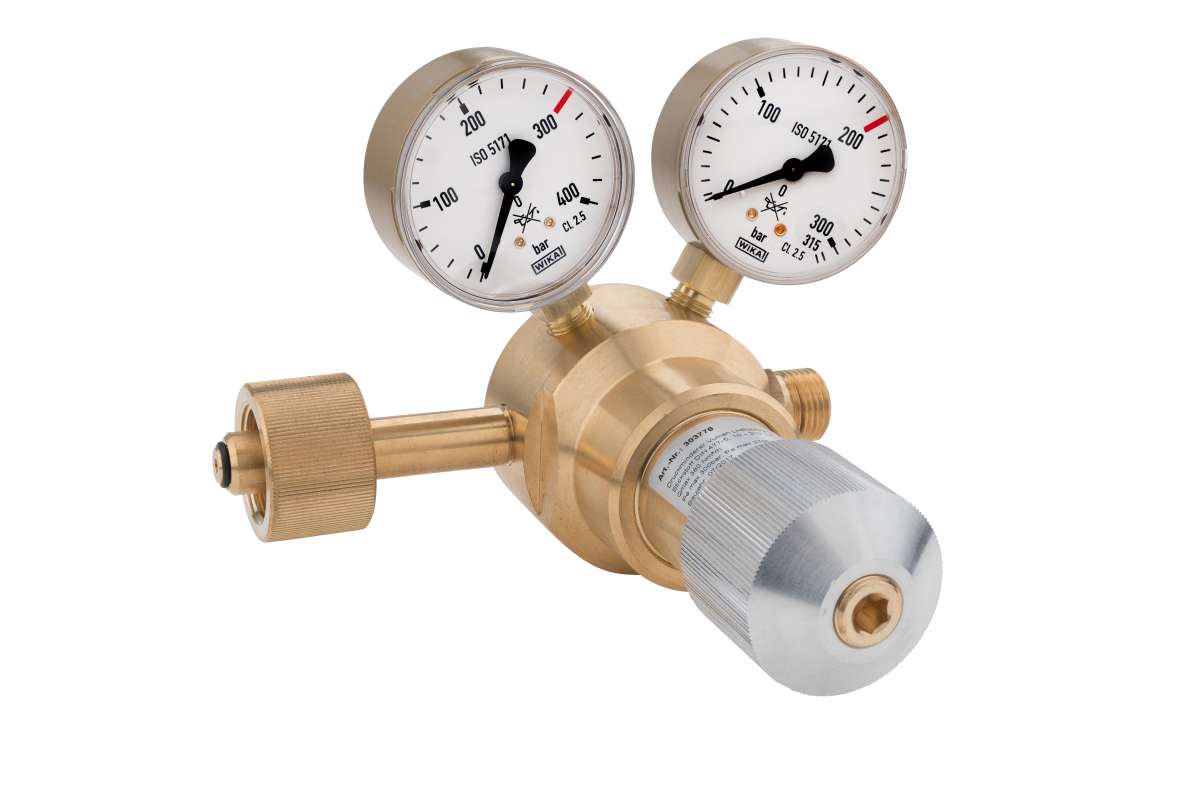

Main and line pressure regulator Inert gas 10-100 bar Vulkan LHR200/100 DIN

Main and line pressure reducer for inert gas 10-100 bar Vulkan LHR200/100 DIN according to ISO 2503, single-stage design, with safety pressure gauges according to ISO 5171, maximum inlet pressure: 200 bar, adjustable outlet pressure: 10 - 100 bar, output: 380 Nm?/h (compressed air) at 50 bar outlet pressure and 100 bar pre-pressure, inlet: W 21.8 x 1/14 RH U-nut according to DIN 477-1, outlet: W 21.8 x 1/14 RHaf according to DIN 477-1, inlet pressure gauge: 0 - 315/200 bar, outlet pressure gauge: 0 - 160/100 bar, width x height x depth: 150 x 210 x 120 mm. This main and line pressure reducer is available in the following versions, among others: Special outlet screw connection: Standard:- G1/2RHak according to EN 560 Options (surcharge): Item numberOutlet connection 206765 G1/2RHak according to EN 560 206765-800 External thread G1/4" RHk according to EN560 206765-870 External thread G3/8" RHk according to EN 560 206765-6M Compression fitting VA 6mm 206765-8M Compression fitting VA 8mm 206765-10M Compression fitting VA 10mm 206765-12M Compression fitting VA 12mm 206765-15M Compression fitting VA 15mm 206765-18M Compression fitting VA 18mm
