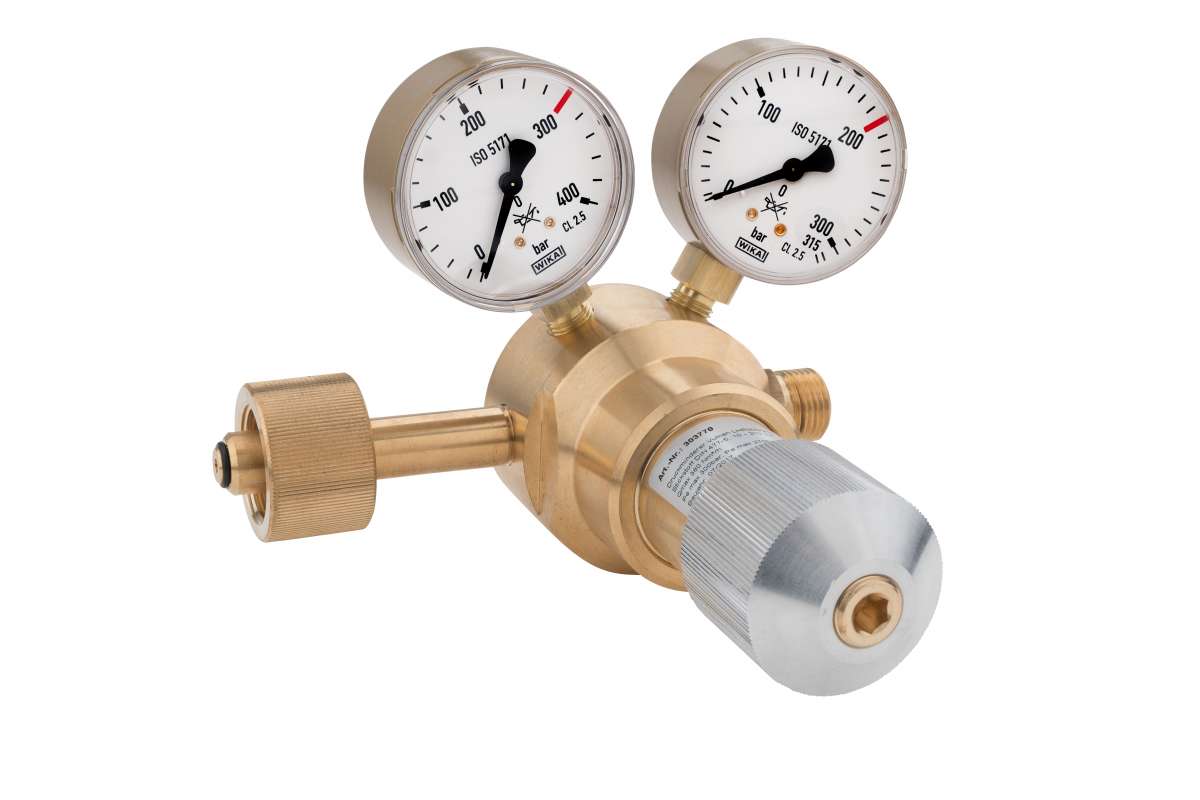

Main and line pressure regulator Nitrogen 10-100 bar Vulkan LHR300/100 DIN

Vulkan LHR 300/100 DIN nitrogen cylinder pressure reducer DIN 477-5, 10 - 100 bar according to ISO 2503, single-stage design, with safety gauges according to DIN EN ISO 5171. Maximum inlet pressure: 300 bar. Adjustable outlet pressure: 10 - 100 bar. Output: 380 Nm³/h (compressed air) at 50 bar outlet pressure and 300 bar inlet pressure. Inlet: W 30 x 2 RH U-nut according to DIN 477 Part 5. Outlet: W 24.32 x 1/14 RH according to DIN 477 Part 1. Inlet gauge: 0 - 400/300 bar. Outlet gauge: 0 - 160/100 bar. Width x Height x Depth: 150 x 210 x 120 mm. Important note for 300 bar pressure reducers. - Please check your cylinder connection! Cylinder pressure regulators for 300 bar have a manual connection according to DIN 477 Part 5 and are NOT backward compatible. This means they do NOT fit cylinders with a maximum filling pressure of 200 bar! If necessary, see our following tutorial, 3: Difference between 200 bar and 300 bar pressure regulators. This main and line pressure reducer is available in the following versions, among others: Special outlet screw connection: Standard:- G1/2RHak according to EN 560 Options (surcharge): Item numberOutlet connection 303765 ​​G1/2RHak according to EN 560 303765-800 External thread G1/4" RHk according to EN560 303765-870 External thread G3/8" RHk according to EN 560 303765-6M Compression fitting VA 6mm 303765-8M Compression fitting VA 8mm 303765-10M Compression fitting VA 10mm 303765-12M Compression fitting VA 12mm 303765-15M Compression fitting VA 15mm 303765-18M compression fitting VA 18mm
