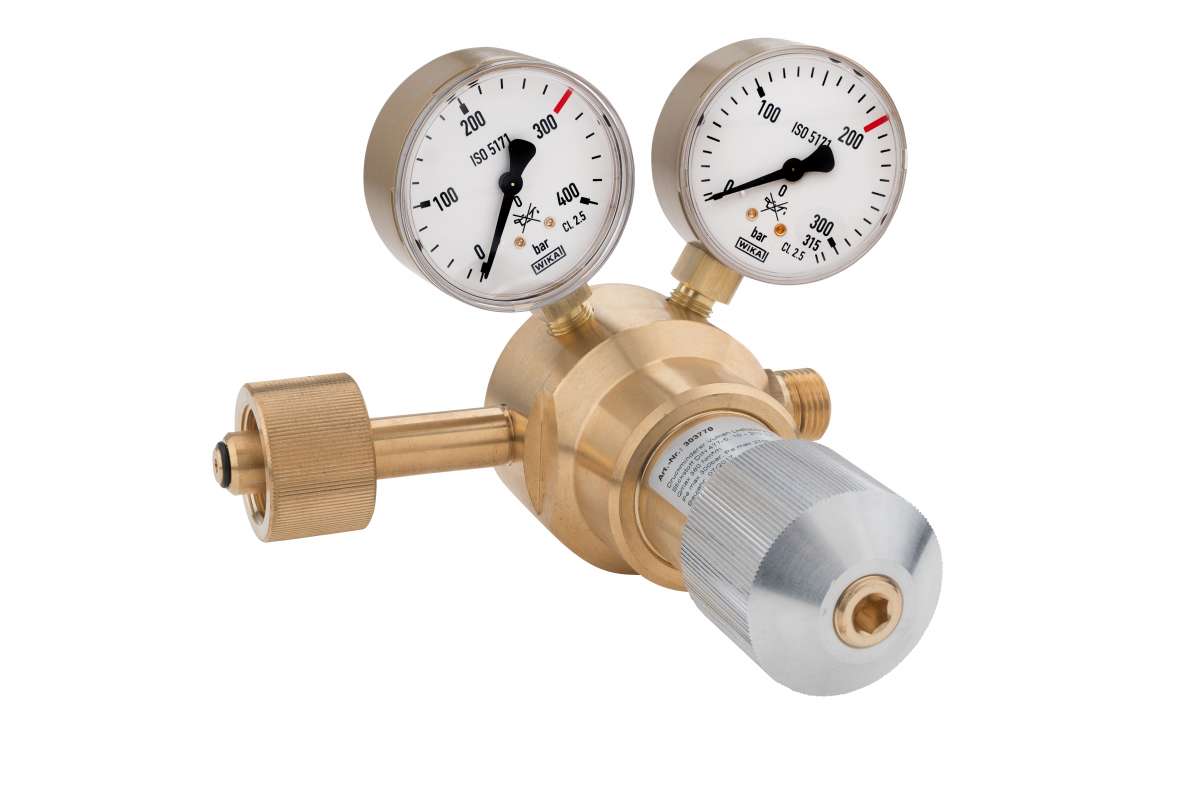

Vulkan LHR 200/100 BSP oxygen cylinder pressure reducer DIN 477-1, 10 - 100 bar according to ISO 2503, single-stage design, with safety pressure gauges according to DIN EN ISO 5171. Maximum inlet pressure: 200 bar. Adjustable outlet pressure: 10 - 100 bar. Output: 380 Nm³/h (compressed air) at 50 bar outlet pressure and 100 bar pre-pressure. Inlet: G3/4 RHf U-nut according to DIN 477 Part 1. Outlet: G3/8 RHif. Inlet pressure gauge: 0 - 315/200 bar. Outlet pressure gauge: 0 - 160/100 bar. Width x Height x Depth: 150 x 210 x 120 mm. This main and line pressure reducer is available in the following versions, among others: Special outlet screw connection: Standard:- G1/2RHak according to EN 560 Options (surcharge): Item numberOutput connection 208760 G1/2RHak according to EN 560 208760-800 External thread G1/4" RHk according to EN560 208760-870 External thread G3/8" RHk according to EN 560 208760-6M Compression fitting VA 6mm 208760-8M Compression fitting VA 8mm 208760-10M Compression fitting VA 10mm 208760-12M Compression fitting VA 12mm 208760-15M Compression fitting VA 15mm 208760-18M Compression fitting VA 18mm
Application:
- Automotive Industry
- Chemical Industry
- Cutting
- Manufacturing Industry
- Petrochemical Industry
- Pharmaceutical Industry
- Research & Development
- Welding
Class (purpose):
- Technical gases
Flow rate:
380 Nm³/h
Gas Quality:
up to 4.5
HP Gauge:
HP gauge scale:
0 to 315 Bar
Inlet Connection:
DIN 477-1 No. 9 (G 3/4 RH)
Inlet pressure:
200 Bar
LP Gauge:
LP gauge scale:
0 to 160 Bar
Material:
Brass
Outlet Connection:
G 1/2 RHak (according to EN 560)
Outlet pressure:
100 Bar
Product type:
Cylinder regulators
Regulation Type:
Single stage
Type of Gas:
Oxygen (O2)
W (Width) x H (Height) x D (Depth):
150x210x120mm.
Outlet pressure:
100Bar
