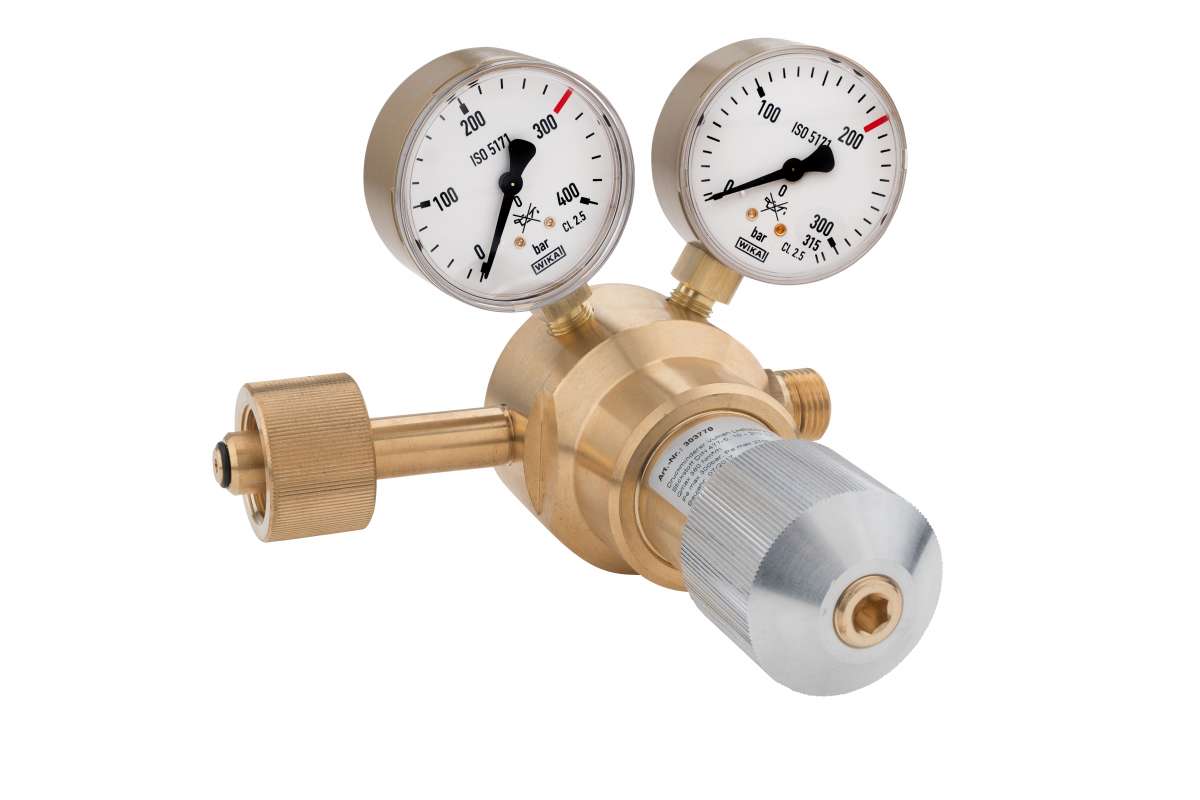

Main and line pressure regulator Oxygen 0-200 bar Vulkan LHR200/200 BSP

Vulkan LHR 200/200 BSP oxygen cylinder pressure reducer DIN 477-1, 10 - 200 bar according to ISO 2503, single-stage design, with safety pressure gauges according to DIN EN ISO 5171. Maximum inlet pressure: 200 bar. Adjustable outlet pressure: 10 - 200 bar. Output: 380 Nm?/h (compressed air) at 50 bar outlet pressure and 200 bar inlet pressure. Inlet: G3/4 RHf U-nut according to DIN 477-1. Outlet: G3/8 RHif. Inlet pressure gauge: 0 - 315/200 bar. Outlet pressure gauge: 0 - 315/200 bar. Width x Height x Depth: 150 x 210 x 120 mm. This main and line pressure reducer is available in the following versions, among others: Special outlet screw connection: Standard:- G1/2RHak according to EN 560 Options (surcharge): Item numberOutput connection 208770 G1/2RHak according to EN 560 208770-800 External thread G1/4" RHk according to EN560 208770-870 External thread G3/8" RHk according to EN 560 208770-6M Compression fitting VA 6mm 208770-8M Compression fitting VA 8mm 208770-10M Compression fitting VA 10mm 208770-12M Compression fitting VA 12mm 208770-15M Compression fitting VA 15mm 208770-18M Compression fitting VA 18mm
