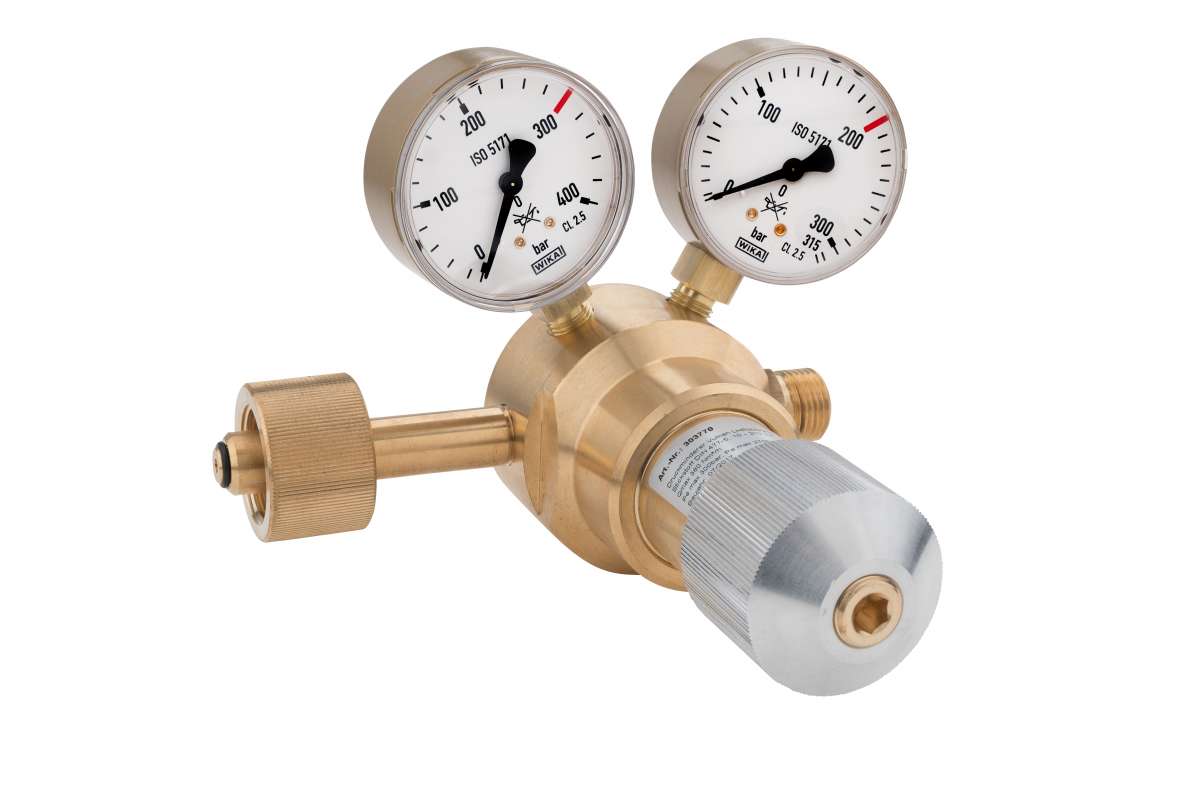

Main and line pressure regulator Vulkan LHR 200/200 DIN Helium DIN 477-1, 10 - 200 bar

Main and line pressure reducer Vulkan LHR 200/200 DIN Helium DIN 477-1, 10 - 200 bar according to ISO 2503, single-stage design, with safety pressure gauges according to DIN EN ISO 5171, max. inlet pressure: 200 bar, adjustable outlet pressure: 10 - 200 bar, output: 380 Nm?/h air at 50 bar outlet pressure and 200 bar pre-pressure, inlet: W 21.8x1/14 RHf U-nut according to DIN 477-1, outlet: W 21.8x1/14 RHaf according to DIN 477-1, inlet pressure gauge: 0 - 315/200 bar, outlet pressure gauge: 0 - 315/200 bar, width x height x depth: 150 x 210 x 120 mm. This main and line pressure reducer is Available in the following versions, among others: Special outlet screw connection: Standard:- G1/2RHak according to EN 560 Options (surcharge): Item numberOutlet connection 20677526 G1/2RHak according to EN 560 20677526-800 External thread G1/4" RHk according to EN560 20677526-870 External thread G3/8" RHk according to EN 560 20677526-6M Compression fitting VA 6mm 20677526-8M Compression fitting VA 8mm 20677526-10M Compression fitting VA 10mm 20677526-12M Compression fitting VA 12mm 20677526-15M Compression fitting VA 15mm 20677526-18M compression fitting VA 18mm
