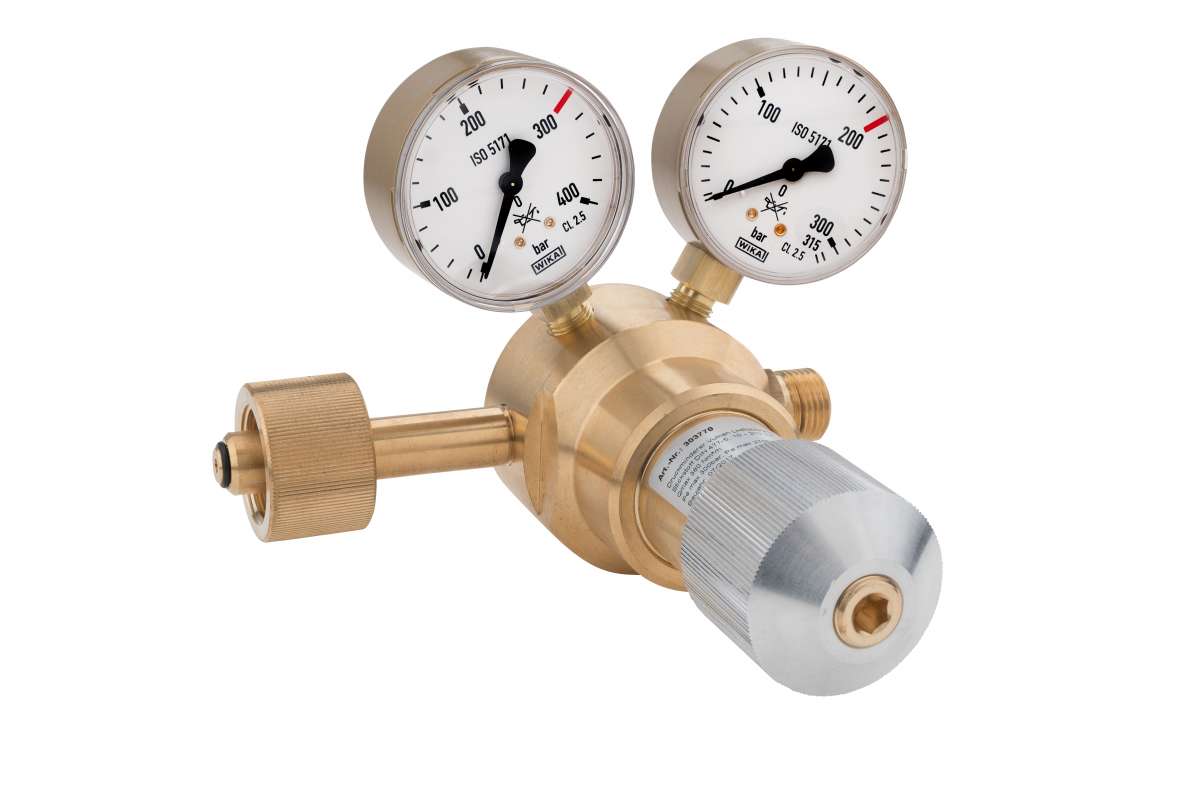

Main and line pressure regulator Vulkan LHR 200/200 DIN Nitrogen DIN 477-1, 10 - 200 bar

Main and line pressure reducer Vulkan LHR 200/200 DIN nitrogen DIN 477-1, 10 - 200 bar according to ISO 2503, single-stage design, with safety pressure gauges according to DIN EN ISO 5171, maximum inlet pressure: 200 bar, outlet pressure: 10 - 200 bar adjustable, maximum output: 380 Nm?/h air at 50 bar outlet pressure, inlet: W 24.32 x 1/14 RH U-nut according to DIN 477-1, outlet: W 24.32 x 1/14 RHaf according to DIN 477-1, inlet pressure gauge: 0 - 315/200 bar, outlet pressure gauge: 0 - 315/200 bar, width x height x depth: 180 x 140 x 190 mm. This main and line pressure reducer is available, among others. in the following versions: Special outlet screw connection: Standard:- G1/2RHak according to EN 560 Options (surcharge): Item numberOutlet connection 203775 G1/2RHak according to EN 560 203775-800 External thread G1/4" RHk according to EN560 203775-870 External thread G3/8" RHk according to EN 560 203775-6M Compression fitting VA 6mm 203775-8M Compression fitting VA 8mm 203775-10M Compression fitting VA 10mm 203775-12M Compression fitting VA 12mm 203775-15M Compression fitting VA 15mm 203775-18M Compression fitting VA 18mm
