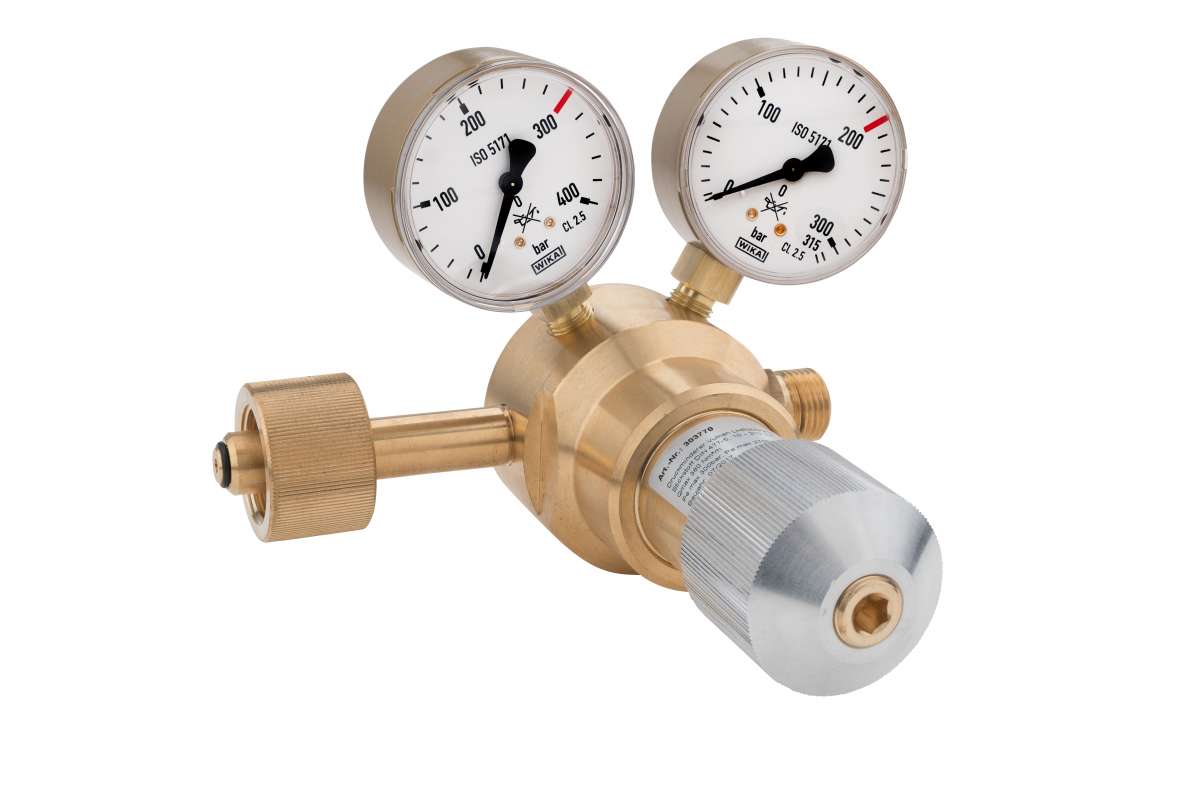

Vulkan LHR 200/200 BSP cylinder pressure reducer for inert gases DIN 477-1, 10 - 200 bar according to ISO 2503, single-stage design, with safety pressure gauges according to DIN EN ISO 5171. Maximum inlet pressure: 200 bar. Adjustable outlet pressure: 10 - 200 bar. Output: 380 Nm³/h air at 50 bar outlet pressure and 200 bar inlet pressure. Inlet: W21.8x1/14 RHf U-nut according to DIN 477-1. Outlet: G1/2 RHak according to EN 560. Inlet pressure gauge: 0 - 315/200 bar. Outlet pressure gauge: 0 - 315/200 bar. Width x Height x Depth: 150 x 210 x 120 mm. This main and line pressure reducer is available in the following, among others: Versions: Special outlet screw connection: Standard:- G1/2RHak according to EN 560 Options (surcharge): Item numberOutlet connection 206770 G1/2RHak according to EN 560 206770-800 External thread G1/4" RHk according to EN560 206770-870 External thread G3/8" RHk according to EN 560 206770-6M Compression fitting VA 6mm 206770-8M Compression fitting VA 8mm 206770-10M Compression fitting VA 10mm 206770-12M Compression fitting VA 12mm 206770-15M Compression fitting VA 15mm 206770-18M Compression fitting VA 18mm
Application:
- Automotive Industry
- Chemical Industry
- Cutting
- Manufacturing Industry
- Petrochemical Industry
- Pharmaceutical Industry
- Research & Development
- Welding
Class (purpose):
- Technical gases
Flow rate:
380 Nm³/h
Gas Quality:
up to 4.5
HP Gauge:
HP gauge scale:
0 to 315 Bar
Inlet Connection:
DIN 477-1 No. 6 (W 21.8 x 1/14 RH
Inlet pressure:
200 Bar
LP Gauge:
LP gauge scale:
0 to 315 Bar
Material:
Brass
Outlet Connection:
External thread G3/8" RHk according to EN 560
Outlet pressure:
200 Bar
Product type:
Cylinder regulators
Regulation Type:
Single stage
Type of Gas:
Argon (Ar)
W (Width) x H (Height) x D (Depth):
150x210x120mm.
Outlet pressure:
200Bar
