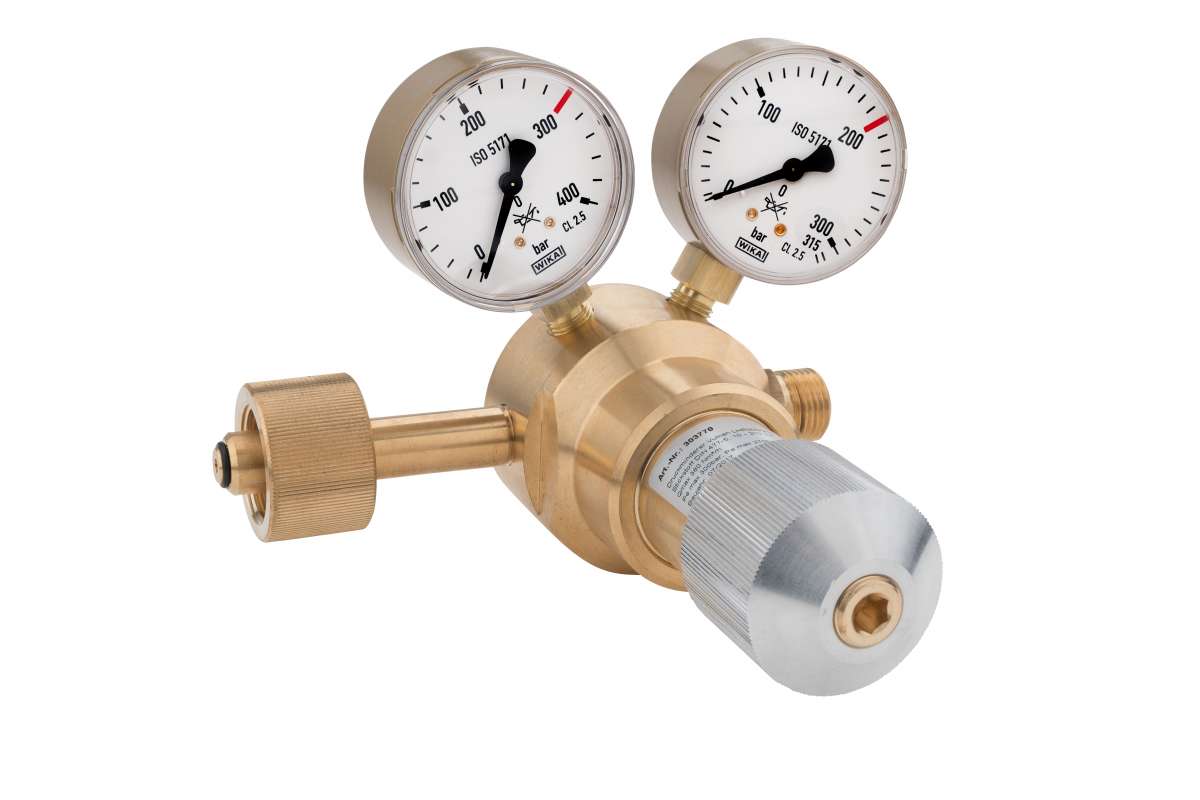

Main and line regulator hydrogen 0-200 bar Vulkan LHR200/200 BSP

Vulkan LHR 200/200 BSP cylinder pressure reducer for fuel gases DIN 477-1, 10 - 200 bar according to DIN EN ISO 2503, Class 3, single-stage design, with safety pressure gauges according to DIN EN ISO 5171. Maximum inlet pressure: 200 bar. Output pressure: 0 - 200 bar adjustable. Maximum output: 380 Nm?/h at 50 bar outlet pressure. Inlet connection: W21.8x1/14LH U-nut according to DIN 477. Outlet connection: G1/2RHak. Inlet pressure gauge: 0 - 315 / 200 bar. Outlet pressure gauge: 0 - 315 / 200 bar. Width x Height x Depth: 150 x 210 x 120 mm. This main and line pressure reducer is available in the following versions, among others: Special outlet screw connection: Standard:- G1/2RHak according to EN 560 Options (surcharge): Item numberOutput connection 204770 G1/2RHak according to EN 560 204770-800 External thread G1/4" RHk according to EN560 204770-870 External thread G3/8" RHk according to EN 560 204770-6M Compression fitting VA 6mm 204770-8M Compression fitting VA 8mm 204770-10M Compression fitting VA 10mm 204770-12M Compression fitting VA 12mm 204770-15M Compression fitting VA 15mm 204770-18M Compression fitting VA 18mm
