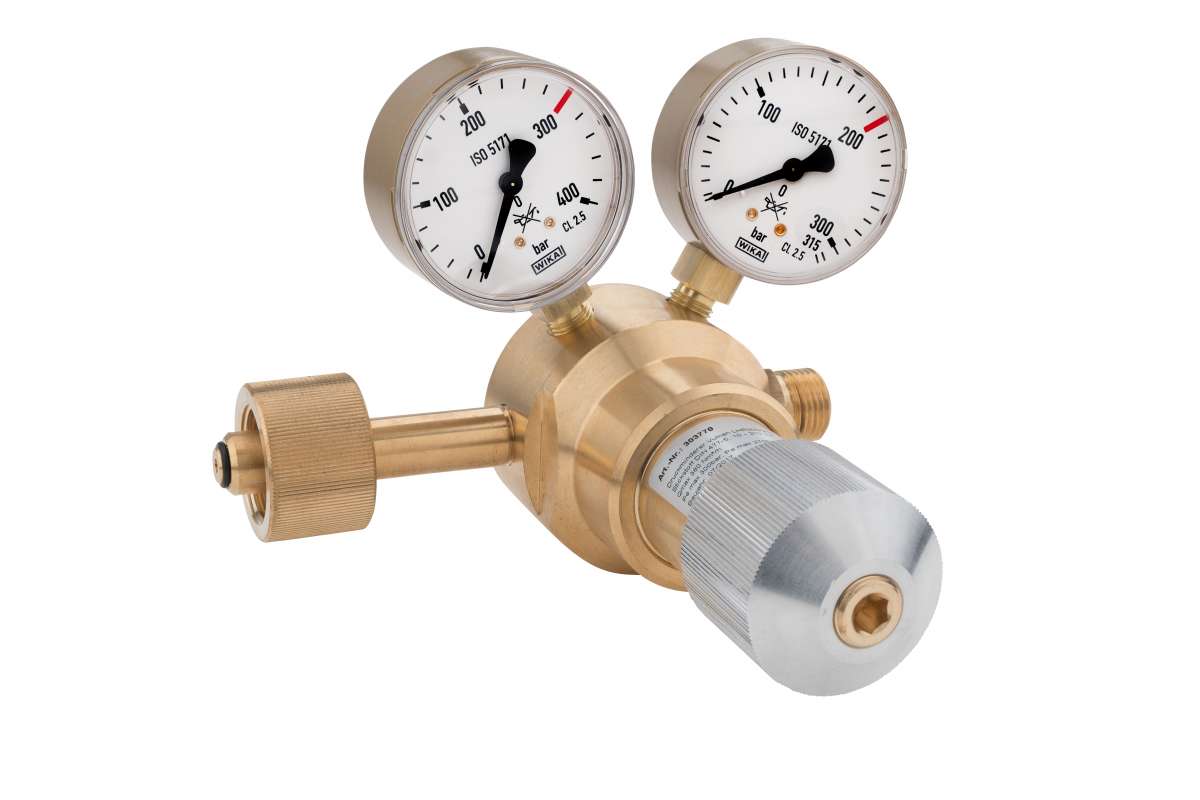

Main and line regulator nitrogen 0-200 bar Vulkan LHR200/200 BSP

Vulkan LHR 200/200 BSP nitrogen cylinder pressure reducer DIN 477-1, 10 - 200 bar according to ISO 2503, single-stage design, with safety pressure gauges according to DIN EN ISO 5171, maximum inlet pressure: 200 bar, outlet pressure: 10 - 200 bar adjustable, maximum output: 380 Nm³/h air at 50 bar outlet pressure. Inlet: W 24.32 x 1/14 RH U-nut according to DIN 477-1, outlet: G1/2 RH, threaded connection according to EN 560, inlet pressure gauge: 0 - 315/200 bar, outlet pressure gauge: 0 - 315/200 bar, width x height x depth: 180 x 140 x 190 mm. This main and line pressure reducer is available in the following versions, among others: Special outlet screw connection: Standard:- G1/2RHak according to EN 560 Options (surcharge): Item numberOutput connection 203770 G1/2RHak according to EN 560 203770-800 External thread G1/4" RHk according to EN560 203770-870 External thread G3/8" RHk according to EN 560 203770-6M Compression fitting VA 6mm 203770-8M Compression fitting VA 8mm 203770-10M Compression fitting VA 10mm 203770-12M Compression fitting VA 12mm 203770-15M Compression fitting VA 15mm 203770-18M Compression fitting VA 18mm
