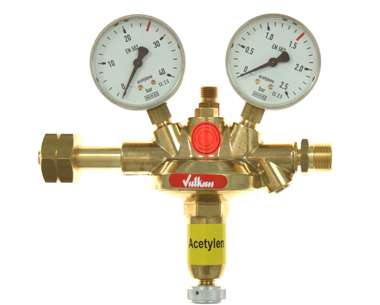

Main pressure reducer Vulkan HA5/25 Acetylene 0-1.5 bar, 5 Nm?/h
Standards & Design:
according to ISO 7291, single-stage design, burnout tested according to ISO 2503, with safety pressure gauges according to DIN EN ISO 5171
according to EN 560
Technical data:
• Maximum inlet pressure: 25 bar
• outlet pressure
• Output pressure: 0-1
• Inlet: G3/4LHf U-nut
• Outlet: G1/2RHak according to EN 560
• Inlet pressure gauge: 0-40/25 bar
• Outlet pressure gauge: 0-2
Dimensions:
Width x Height x Depth: 200 x 190 x 75 mm
Standards & Design:
according to ISO 7291, single-stage design, burnout tested according to ISO 2503, with safety pressure gauges according to DIN EN ISO 5171
according to EN 560
Technical data:
• Maximum inlet pressure: 25 bar
• outlet pressure
• Output pressure: 0-1
• Inlet: G3/4LHf U-nut
• Outlet: G1/2RHak according to EN 560
• Inlet pressure gauge: 0-40/25 bar
• Outlet pressure gauge: 0-2
Dimensions:
Width x Height x Depth: 200 x 190 x 75 mm
Type of Gas:
Acetylene (C2H2)
Product type:
Main regulators
Regulation Type:
Single stage
Inlet pressure (max):
25 Bar
Outlet pressure:
0 - 1,5 Bar
Gas Quality:
up to 4.5 (technical gases)
Flow rate:
5 Nm³/h
Outlet Connection:
G 1/2 RHi
Application:
- Automotive Industry
- Chemical Industry
- Cutting
- Manufacturing Industry
- Petrochemical Industry
- Pharmaceutical Industry
- Research & Development
- Welding
Class (purpose):
- Technical gases
Material:
Brass
HP Gauge:
HP gauge scale:
0 to 40 Bar
LP Gauge:
LP gauge scale:
0 to 2,5 Bar
W (Width) x H (Height) x D (Depth):
200x190x75mm.
