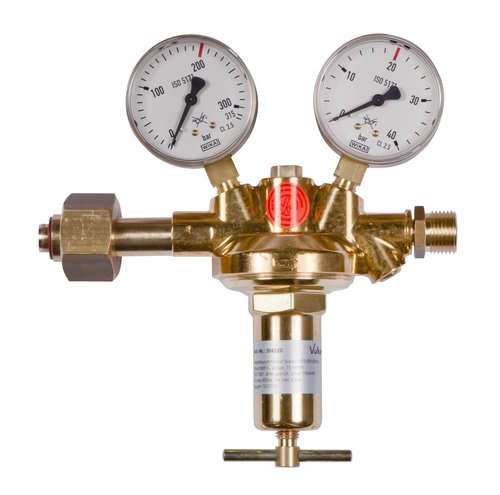

Main regulator CO₂ 0-20 bar Vulkan H20/100 Effect

Main pressure reducer Vulkan H20/100 Effect CO2 0 - 20 bar 75 Nm?/h according to ISO 7291, single-stage design, with pre-pressure compensation for constant back pressure with falling pre-pressure, with safety pressure gauges according to DIN EN ISO 5171. Inlet pressure max: 100 bar. Outlet pressure: 0 - 20 bar adjustable. Output max: 75 Nm?/h compressed air at 20 bar back pressure. Inlet: W21.8x1/14 RHf U-nut according to DIN 477-1. Outlet: G1/2RHak according to EN 560. Inlet pressure gauge: 0 - 160/100 bar. Outlet pressure gauge: 0 - 40/20 bar. Width x Height x Depth: 200 x 190 x 75 mm. Due to the expansion cold, the performance of the pressure reducer is severely limited and does not correspond by far to the Compressed air values ​​specified. For increased continuous output, the use of a gas preheater may be necessary. This main pressure reducer is available in the following versions, among others: Gas purity/membrane: Standard: - for technical gases up to a gas purity of 4.5 with standard membrane Optional (surcharge): - for pure gases up to a gas purity of 5.0 with stainless steel membrane SS321 (1.4541) Special outlet screw connection: Standard: - G1/2RHak according to EN 560 Options (surcharge): Item number Gas purity Outlet connection 20652006 for technical gases up to 4.5, with standard membrane G1/2RHak according to EN 560 20652006-800 for technical gases up to 4.5, with standard membrane External thread G1/4" RHk according to EN560 20652006-870 for technical gases up to 4.5, with standard membrane external thread G3/8" RHk according to EN 560 20652006-6M for technical gases up to 4.5, with standard membrane compression fitting VA 6mm 20652006-8M for technical gases up to 4.5, with standard membrane compression fitting VA 8mm 20652006-10M for technical gases up to 4.5, with standard membrane compression fitting VA 10mm 20652006-12M for technical gases up to 4.5, with standard membrane compression fitting VA 12mm 20652006-15M for technical gases up to 4.5, with standard membrane compression fitting VA 15mm 20652006-18M for technical gases up to 4.5, with standard membrane compression fitting VA 18mm 20652006-MM for pure gases up to 5.0, with metal membrane SS321 (1.4541) G1/2RHak according to EN 560 20652006-MM-800 for pure gases up to 5.0, with metal membrane SS321 (1.4541) external thread G1/4" RHk according to EN560 20652006-MM-870 for pure gases up to 5.0, with metal membrane SS321 (1.4541) external thread G3/8" RHk according to EN 560 20652006-MM-6M ​​for pure gases up to 5.0, with metal membrane SS321 (1.4541) compression fitting VA 6mm 20652006-MM-8M for pure gases up to 5.0, with metal membrane SS321 (1.4541) compression fitting VA 8mm 20652006-MM-10M for pure gases up to 5.0, with metal membrane SS321 (1.4541) compression fitting VA 10mm 20652006-MM-12M for pure gases up to 5.0, with metal membrane SS321 (1.4541) compression fitting VA 12mm 20652006-MM-15M for pure gases up to 5.0, with metal membrane SS321 (1.4541) compression fitting VA 15mm 20652006-MM-18M for pure gases up to 5.0, with metal membrane SS321 (1.4541) compression fitting VA 18mm
