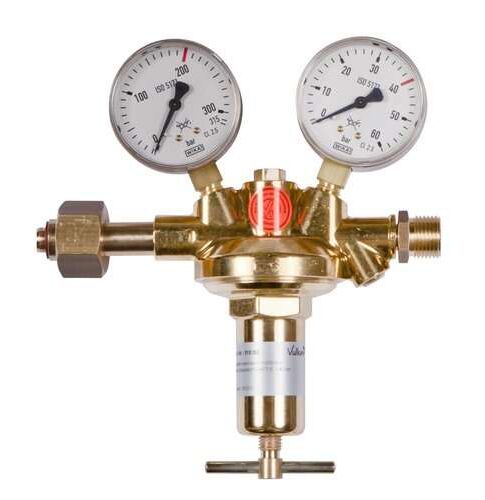

Main pressure reducer Vulkan H40/200 Effect CO2 DIN 477-1, 0-40 bar, 120 Nm?/h according to DIN EN ISO 7291, single-stage design, with pre-pressure compensation for constant back pressure with falling pre-pressure, with safety pressure gauges according to DIN 562. Maximum inlet pressure: 200 bar. Output pressure: 0-40 bar adjustable. Maximum output: 120 Nm?/h compressed air at 40 bar back pressure. Inlet: W21.8x1/14RHf U-nut according to DIN 477, Outlet: G 1/2 RHak according to DIN EN 560. Inlet pressure gauge: 0-315/200 bar. Outlet pressure gauge: 0-100/40 bar. Width x Height x Depth: 200 x 210 x 75 mm. This main pressure reducer is available in the following versions, among others: Gas purity/membrane: Standard:- for technical gases up to a gas purity of 4.5 with standard membrane Optional (surcharge):- for pure gases up to a gas purity of 5.0 with stainless steel membrane SS321 (1.4541) Special outlet screw connection: Standard:- G1/2RHak according to EN 560 Options (surcharge): Item numberGas purityOutlet connection 20654006 for technical gases up to 4.5, with standard membrane G1/2RHak according to EN 560 20654006-800 for technical gases up to 4.5, with standard membrane external thread G1/4" RHk according to EN560 20654006-870 for technical gases up to 4.5, with standard membrane external thread G3/8" RHk according to EN 560 20654006-6M for technical gases up to 4.5, with standard membrane compression fitting VA 6mm 20654006-8M for technical gases up to 4.5, with standard membrane compression fitting VA 8mm 20654006-10M for technical gases up to 4.5, with standard membrane compression fitting VA 10mm 20654006-12M for technical gases up to 4.5, with standard membrane compression fitting VA 12mm 20654006-15M for technical gases up to 4.5, with standard membrane compression fitting VA 15mm 20654006-18M for technical gases up to 4.5, with standard membrane compression fitting VA 18mm 20654006-MM for pure gases up to 5.0, with metal membrane SS321 (1.4541) G1/2RHak according to EN 560 20654006-MM-800 for pure gases up to 5.0, with metal membrane SS321 (1.4541) external thread G1/4" RHk according to EN560 20654006-MM-870 for pure gases up to 5.0, with metal membrane SS321 (1.4541) external thread G3/8" RHk according to EN 560 20654006-MM-6M for pure gases up to 5.0, with metal membrane SS321 (1.4541) compression fitting VA 6mm 20654006-MM-8M for pure gases up to 5.0, with metal membrane SS321 (1.4541) compression fitting VA 8mm 20654006-MM-10M for pure gases up to 5.0, with metal membrane SS321 (1.4541) compression fitting VA 10mm 20654006-MM-12M for pure gases up to 5.0, with metal membrane SS321 (1.4541) compression fitting VA 12mm 20654006-MM-15M for pure gases up to 5.0, with metal membrane SS321 (1.4541) compression fitting VA 15mm 20654006-MM-18M for pure gases up to 5.0, with metal membrane SS321 (1.4541) compression fitting VA 18mm
Application:
- Automotive Industry
- Chemical Industry
- Cutting
- Manufacturing Industry
- Petrochemical Industry
- Pharmaceutical Industry
- Research & Development
- Welding
Class (purpose):
- Technical gases
Flow rate:
120 Nm³/h
Gas Quality:
up to 4.5
HP Gauge:
HP gauge scale:
0 to 315 Bar
Inlet Connection:
DIN 477-1 No. 6 (W 21.8 x 1/14 RH
Inlet pressure:
200 Bar
LP Gauge:
LP gauge scale:
0 to 100 Bar
Material:
Brass
Outlet Connection:
Compression fitting front 10 mm
Outlet pressure:
40 Bar
Product type:
Cylinder regulators
Regulation Type:
Single stage
Type of Gas:
Carbon Dioxide (CO2)
W (Width) x H (Height) x D (Depth):
200x210x75mm.
Outlet pressure:
40Bar
