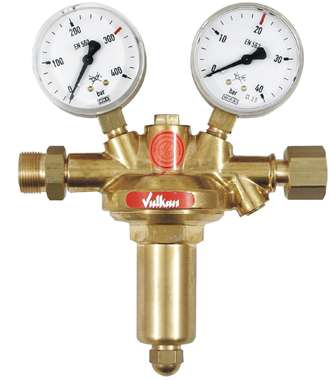

Main regulator CO₂/Argon mixture 14 bar Vulkan H20/200 for AM35 right side

Main pressure reducer Vulkan H 20/200 for AM 35 right CO2/Argon 14 bar according to DIN EN ISO 7291, single-stage design, with pre-pressure compensation for constant outlet pressure with falling pre-pressure, with safety pressure gauges according to DIN EN ISO 5171. Maximum inlet pressure: 200 bar. Output pressure: 14 bar fixed. Maximum output: 75 Nm³/h at 20 bar outlet pressure. Inlet: M24x1.5RHak -16 S. Outlet: G1/2RHk U-nut according to DIN EN 560. Inlet pressure gauge: 0 - 315 / 200 bar. Outlet pressure gauge: 0 - 40/20 bar. Width x Height x Depth: 200 x 190 x 75 mm. *****NOTE***** Replacement pressure reducer for automatic changeover group AM35/AM35H (20 bar fixed). This pressure reducer fits Do NOT connect directly to a cylinder bundle on the connection side! Please specify the system number when ordering! This main pressure reducer is available in the following versions, among others: Gas purity/diaphragm: Standard: - for technical gases up to a purity of 4.5 with a standard membrane. Optional (surcharge): - for pure gases up to a purity of 5.0 with a stainless steel membrane made of SS321 (1.4541).
