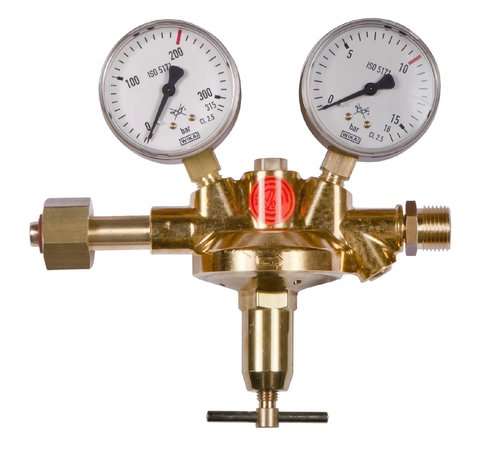

Main regulator fuel gas 0-10 bar Vulkan H10/200 Effect

Main pressure reducer Vulkan H10/200 Effect, fuel gas, 0-10 bar, 50 Nm³/h according to ISO 7291, single-stage design, with pre-pressure compensation for constant outlet pressure with falling pre-pressure, with safety pressure gauges according to ISO 5171, maximum inlet pressure: 200 bar, outlet pressure: 0-10 bar adjustable, maximum output: 50 Nm³/h air at 10 bar outlet pressure. Inlet: W 21.8x1/14LH U-nut according to DIN 477, outlet: G1/2RHak according to EN 560, inlet pressure gauge: 0-315/200 bar, outlet pressure gauge: 0-16/10 bar, width x height x depth: 210 x 190 x 85 mm. This main pressure reducer is available in the following versions, among others: Gas purity/diaphragm: Standard: - for technical gases up to a gas purity of 4.5 with standard membrane Optional (surcharge): - for pure gases up to a gas purity of 5.0 with stainless steel membrane SS321 (1.4541) Special outlet screw connection: Standard: - G1/2RHak according to EN 560 Options (surcharge): Item number Gas purity Outlet connection 204515 for technical gases up to 4.5, with standard membrane G1/2RHak according to EN 560 204515-800 for technical gases up to 4.5, with standard membrane External thread G1/4" RHk according to EN560 204515-870 for technical gases up to 4.5, with standard membrane External thread G3/8" RHk according to EN 560 204515-6M for technical gases up to 4.5, with standard membrane Compression fitting VA 6mm 204515-8M for technical gases up to 4.5, with standard membrane, compression fitting made of stainless steel 8mm 204515-10M for technical gases up to 4.5, with standard membrane, compression fitting made of stainless steel 10mm 204515-12M for technical gases up to 4.5, with standard membrane, compression fitting made of stainless steel 12mm 204515-15M for technical gases up to 4.5, with standard membrane, compression fitting made of stainless steel 15mm 204515-18M for technical gases up to 4.5, with standard membrane, compression fitting made of stainless steel 18mm 204515-MM for pure gases up to 5.0, with metal membrane SS321 (1.4541) G1/2RHak according to EN 560 204515-MM-800 for pure gases up to 5.0, with metal membrane SS321 (1.4541) external thread G1/4" RHk according to EN560 204515-MM-870 for pure gases up to 5.0, with metal membrane SS321 (1.4541) external thread G3/8" RHk according to EN 560 204515-MM-6M ​​for pure gases up to 5.0, with metal membrane SS321 (1.4541) compression fitting VA 6mm 204515-MM-8M for pure gases up to 5.0, with metal membrane SS321 (1.4541) compression fitting VA 8mm 204515-MM-10M for pure gases up to 5.0, with metal membrane SS321 (1.4541) compression fitting VA 10mm 204515-MM-12M for pure gases up to 5.0, with metal membrane SS321 (1.4541) compression fitting VA 12mm 204515-MM-15M for pure gases up to 5.0, with metal membrane SS321 (1.4541) compression fitting VA 15mm 204515-MM-18M for pure gases up to 5.0, with metal membrane SS321 (1.4541) compression fitting VA 18mm
