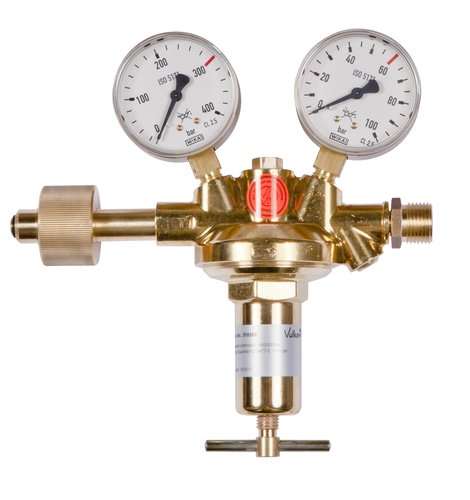

Main regulator Helium 0-60 bar Vulkan H60/300 Effect

Main pressure reducer Vulkan H60/300 Effect Helium DIN 477-5, 0-60 bar, 140 Nm?/h according to DIN EN ISO 7291, single-stage design, with pre-pressure compensation for constant back pressure with falling pre-pressure, with safety gauges according to DIN 562. Maximum inlet pressure: 300 bar. Output pressure: 0-60 bar adjustable. Maximum output: 140 Nm?/h compressed air at 60 bar back pressure. Inlet: W30x2RHf U-nut according to DIN 477-5, Outlet: G 1/2 RHak according to DIN EN 560. Inlet pressure gauge: 0-400/300 bar. Outlet pressure gauge: 0-100/60 bar. Width x Height x Depth: 210 x 190 x 75 mm. Important note for 300 bar pressure reducers - please check yours. Cylinder connection! Cylinder pressure regulators for 300 bar have a manual connection according to DIN 477 Part 5 and are NOT backward compatible. This means they do NOT fit cylinders with a maximum filling pressure of 200 bar! If necessary, see our following tutorial, 3: Difference between 200 bar and 300 bar pressure regulators. This main pressure reducer is available in the following versions, among others: Special outlet screw connection: Standard:- G1/2RHak according to EN 560 Options (surcharge): Item numberGas purityOutlet connection 30656026 for pure gases up to 5.0, with metal diaphragm SS321 (1.4541) G1/2RHak according to EN 560 30656026-800 for pure gases up to 5.0, with metal diaphragm SS321 (1.4541) External thread G1/4" RHk according to EN560 30656026-870 for pure gases up to 5.0, with metal diaphragm SS321 (1.4541) External thread G3/8" RHk according to EN 560 30656026-6M for pure gases up to 5.0, with metal diaphragm SS321 (1.4541) Compression fitting VA 6mm 30656026-8M for pure gases up to 5.0, with metal membrane SS321 (1.4541) Compression fitting VA 8mm 30656026-10M for pure gases up to 5.0, with metal membrane SS321 (1.4541) Compression fitting VA 10mm 30656026-12M for pure gases up to 5.0, with metal membrane SS321 (1.4541) Compression fitting VA 12mm 30656026-15M for pure gases up to 5.0, with metal membrane SS321 (1.4541) Compression fitting VA 15mm 30656026-18M for pure gases up to 5.0, with metal membrane SS321 (1.4541) compression fitting VA 18mm
