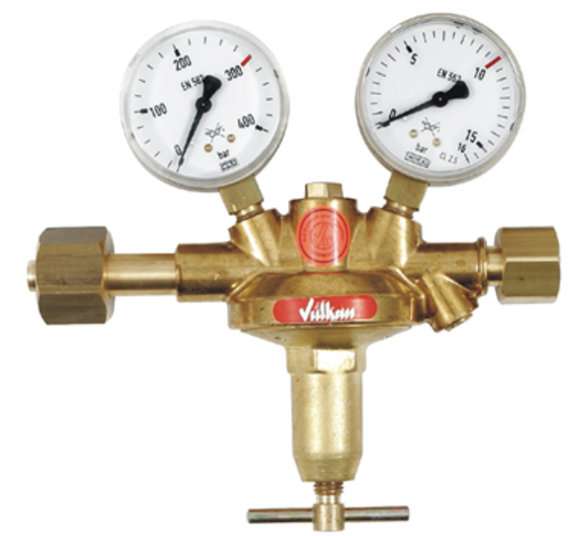

Main regulator Hydrogen 0-10 bar Vulkan H10/300 Effect for SE10

Main pressure reducer Vulkan H10/300 Effect fuel gases for SE10/300, 0 - 10 bar according to DIN EN ISO 7291, single-stage design, with safety pressure gauges according to DIN EN ISO 5171, Maximum inlet pressure: 300 bar, Output pressure: 0 - 10 bar adjustable, Maximum output: 50 Nm³/h air at 10 bar outlet pressure. Inlet: M24x1.5 RHf U-nut, Outlet: G1/2 RHk U-nut according to EN 560, Connection for relief valves G1/4 RHak, Inlet pressure gauge: 0 - 400/300 bar, Outlet pressure gauge: 0 - 16/10 bar, Width x Height x Depth: 211 x 240 x 72 mm *****NOTE***** Replacement pressure reducer for stationary single cylinder system SE10. This pressure reducer fits on the connection side. NOT directly to a cylinder bundle! Please specify the system number when ordering! This main pressure reducer is available in the following versions, among others: Gas purity/diaphragm: Standard: - for technical gases up to a purity of 4.5 with a standard membrane. Optional (surcharge): - for pure gases up to a purity of 5.0 with a stainless steel membrane SS321 (1.4541).
