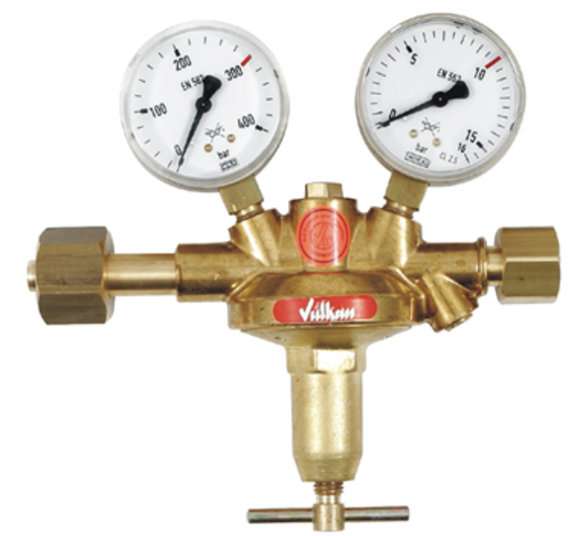

Main regulator Oxygen 0-10 bar Vulkan H10/300 Effect for SE10

Main pressure reducer Vulkan H10/300 Effect oxygen for SE 10/300, 0 - 10 bar according to ISO 7291, single-stage design, with safety pressure gauges according to DIN EN ISO 5171, maximum inlet pressure: 300 bar, outlet pressure: 0 - 10 bar adjustable, maximum output: 50 Nm³/h air at 10 bar outlet pressure. Inlet: M24x1.5 RHf U-nut, outlet: G1/2 RHk U-nut according to EN 560, inlet pressure gauge: 0 - 400/300 bar, outlet pressure gauge: 0 - 16/10 bar, width x height x depth: 210 x 190 x 75 mm *****NOTE***** Replacement pressure reducer for stationary single cylinder system SE10. This pressure reducer does NOT fit directly onto a cylinder bundle on the connection side! Please state the system number when ordering. This main pressure reducer is available in the following versions: Gas purity/diaphragm: Standard: - for technical gases up to a gas purity of 4.5 with a standard membrane. Optional (surcharge): - for pure gases up to a gas purity of 5.0 with a stainless steel membrane SS321 (1.4541).
