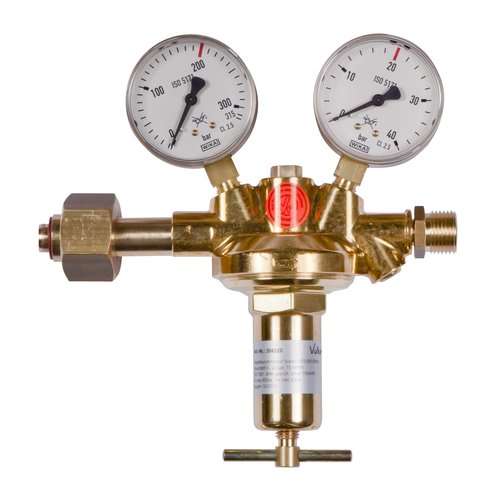

Main regulator Oxygen 0-20 bar Vulkan H20/200 Effect

Main pressure reducer Vulkan H20/200 Effect Oxygen DIN 477-1, 0 - 20 bar according to ISO 7291, single-stage design, burnout tested according to ISO 7291 with pre-pressure compensation for constant back pressure with falling pre-pressure, with safety pressure gauges according to DIN EN ISO 5171. Maximum inlet pressure: 200 bar. Output pressure: 0 - 20 bar adjustable. Maximum output: 75 Nm?/h at 20 bar back pressure. Inlet: G3/4 RHf U-nut according to DIN 477-1. Outlet: G1/2 RHak according to EN 560. Inlet pressure gauge: 0 - 315/200 bar. Outlet pressure gauge: 0 - 40/20 bar. Width x Height x Depth: 210 x 190 x 75 mm. This cylinder pressure reducer is available in the following versions, among others: Gas purity/membrane: Standard:- for technical gases up to a gas purity of 4.5 with standard membrane Optional (surcharge):- for pure gases up to a gas purity of 5.0 with stainless steel membrane SS321 (1.4541) Special outlet screw connection: Standard:- external thread G1/2" RHk according to EN 560 Options (surcharge): Item numberGas purityOutlet connection 208250 for technical gases up to 4.5, with standard membrane External thread G1/2" RHk according to EN 560 208250-800 for technical gases up to 4.5, with standard membrane External thread G1/4" RHk according to EN560 208250-870 for technical gases up to 4.5, with standard membrane External thread G3/8" RHk according to EN 560 208250-6M for technical gases up to 4.5, with standard membrane compression fitting VA 6mm 208250-8M for technical gases up to 4.5, with standard membrane compression fitting VA 8mm 208250-10M for technical gases up to 4.5, with standard membrane compression fitting VA 10mm 208250-12M for technical gases up to 4.5, with standard membrane compression fitting VA 12mm 208250-2 for technical gases up to 4.5, with standard membrane compression fitting VA 1/8" 208250-4 for technical gases up to 4.5, with standard membrane compression fitting VA 1/4" 208250-MM for pure gases up to 5.0, with metal membrane SS321 (1.4541) hose nozzle G1/4" RHk x 6mm 208250-MM-812 for pure gases up to 5.0, with metal diaphragm SS321 (1.4541) hose nozzle G3/8" RHk x 9mm 208250-MM-800 for pure gases up to 5.0, with metal diaphragm SS321 (1.4541) external thread G1/4" RHk according to EN560 208250-MM-870 for pure gases up to 5.0, with metal diaphragm SS321 (1.4541) external thread G3/8" RHk according to EN 560 208250-MM-838 for pure gases up to 5.0, with metal diaphragm SS321 (1.4541) external thread G1/2" RHk according to EN 560 208250-MM-6M ​​for pure gases up to 5.0, with metal diaphragm SS321 (1.4541) compression fitting VA 6mm 208250-MM-8M for pure gases up to 5.0, with metal membrane SS321 (1.4541) compression fitting VA 8mm 208250-MM-10M for pure gases up to 5.0, with metal membrane SS321 (1.4541) compression fitting VA 10mm 208250-MM-12M for pure gases up to 5.0, with metal membrane SS321 (1.4541) compression fitting VA 12mm 208250-MM-2 for pure gases up to 5.0, with metal membrane SS321 (1.4541) compression fitting VA 1/8" 208250-MM-4 for pure gases up to 5.0, with metal membrane SS321 (1.4541) compression fitting VA 1/4"
