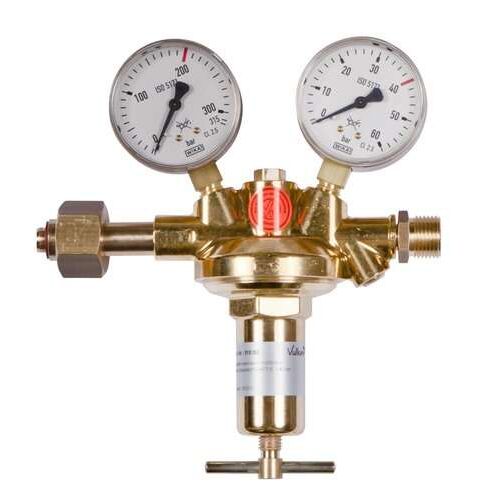

Main regulator Oxygen 0-40 bar Vulkan H40/200 Effect

Main pressure reducer Vulkan H40/200 Effect Oxygen DIN 477-1, 0-40 bar, 120 Nm?/h according to DIN EN ISO 7291, single-stage design, with pre-pressure compensation for constant back pressure with falling pre-pressure, with safety pressure gauges according to DIN 562, with metal diaphragm. Maximum inlet pressure: 200 bar. Output pressure: 0-40 bar adjustable. Maximum output: 120 Nm?/h compressed air at 40 bar back pressure. Inlet: G 3/4 RHf U-nut according to DIN 477, Outlet: G 1/2 RHak according to DIN EN 560. Inlet pressure gauge: 0-315/200 bar. Outlet pressure gauge: 0-100/40 bar. Width x Height x Depth: 200 x 210 x 75 mm. This main pressure reducer is available in the following versions, among others: Special outlet screw connection: Standard:- G1/2RHak according to EN 560 Options (surcharge): Item numberGas purityOutlet connection 218540 for pure gases up to 5.0, with metal membrane SS321 (1.4541) G1/2RHak according to EN 560 218540-800 for pure gases up to 5.0, with metal membrane SS321 (1.4541) External thread G1/4" RHk according to EN560 218540-870 for pure gases up to 5.0, with metal membrane SS321 (1.4541) External thread G3/8" RHk according to EN 560 218540-6M for pure gases up to 5.0, with metal membrane SS321 (1.4541) Compression fitting VA 6mm 218540-8M for pure Gases up to 5.0, with metal membrane SS321 (1.4541) compression fitting VA 8mm 218540-10M for pure gases up to 5.0, with metal membrane SS321 (1.4541) compression fitting VA 10mm 218540-12M for pure gases up to 5.0, with metal membrane SS321 (1.4541) compression fitting VA 12mm 218540-15M for pure gases up to 5.0, with metal membrane SS321 (1.4541) compression fitting VA 15mm 218540-18M for pure gases up to 5.0, with metal membrane SS321 (1.4541) compression fitting VA 18mm
