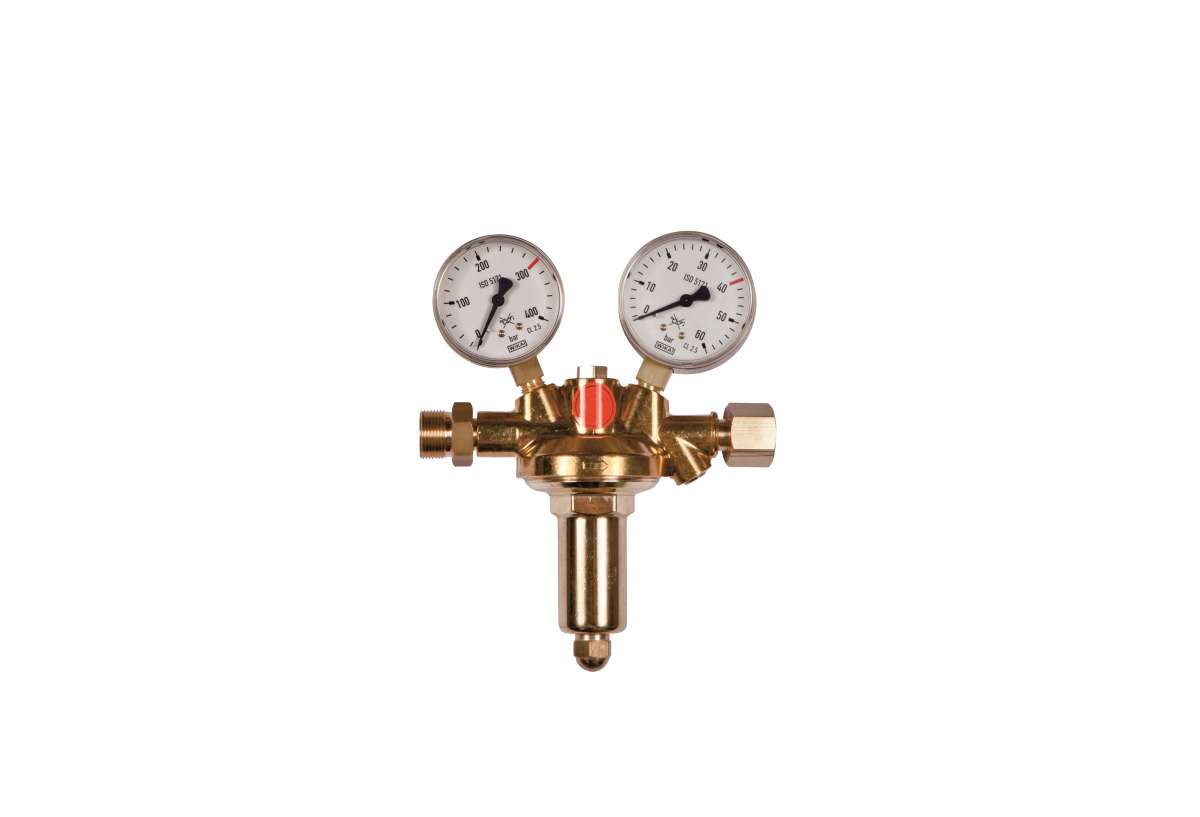

Main regulator Vulkan H40/200 Effect Helium left side for AM 40-25bar

Main pressure reducer Vulkan H40/200 Effect Helium left side for AM 40-25 bar according to ISO 7291, single-stage design, burnout tested according to ISO 7291, with pre-pressure compensation for constant back pressure with falling pre-pressure, with safety pressure gauges according to DIN ISO 5171. Maximum inlet pressure: 200 bar. Output pressure: 25 bar fixed. Maximum output: 120 Nm³/h at 40 bar back pressure. Inlet: External thread M24x1.5RHak-16S. Outlet: Union nut G1/2RHk according to DIN EN 560. Inlet pressure gauge: 0 - 315 / 200 bar. Outlet pressure gauge: 0 - 60 / 40 bar. Width x Height x Depth: 210 x 190 x 75 mm. *****NOTE*****Replacement pressure reducer for automatic changeover group AM40 / AM35 (28 bar fixed) This pressure reducer does NOT fit directly onto a cylinder bundle on the connection side! Please specify the system number when ordering! This main pressure reducer is available in the following versions, among others: Gas purity/diaphragm: Standard: - for technical gases up to a purity of 4.5 with a standard diaphragm. Optional (surcharge): - for pure gases up to a purity of 5.0 with a stainless steel diaphragm made of SS321 (1.4541).
