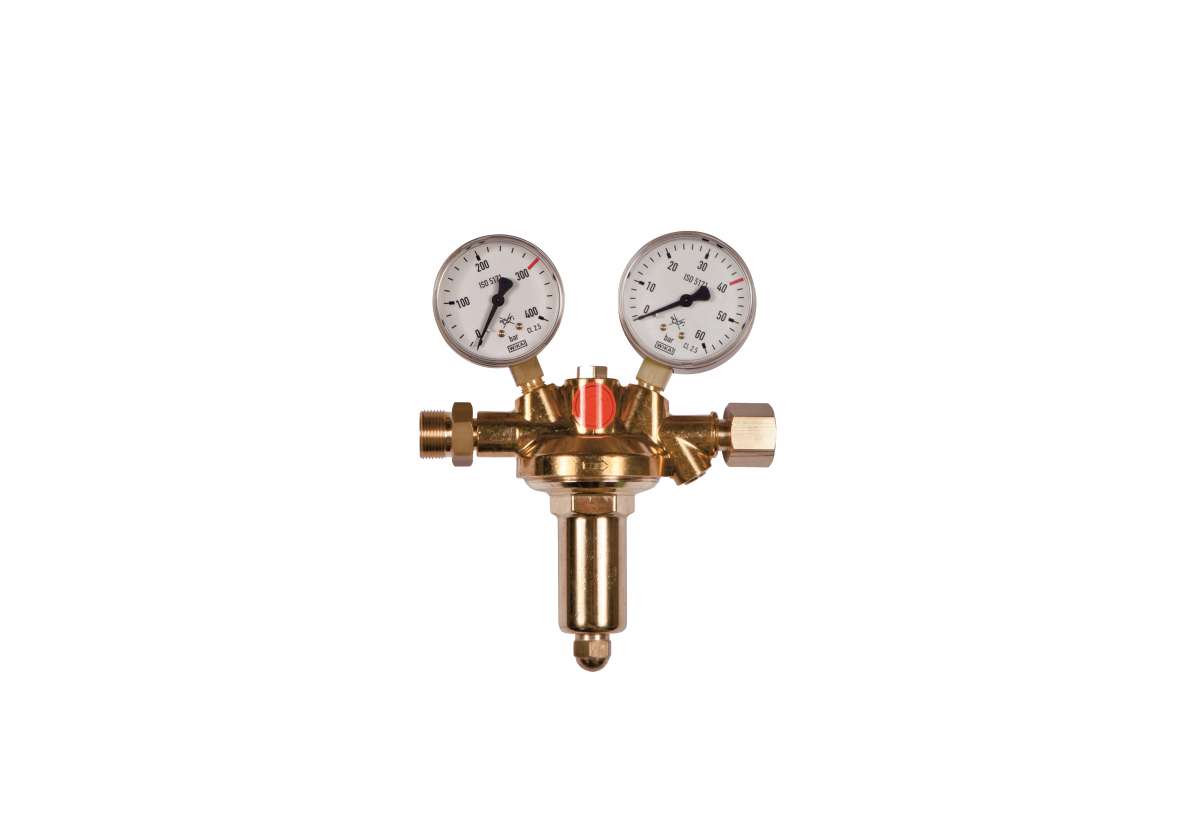

Main pressure reducer Vulkan H40/300 Effect Oxygen for AM 40/300 right
Standards & Design:
according to ISO 7291, single-stage design, with pre-pressure compensation for constant outlet pressure with falling pre-pressure, with safety pressure gauges according to ISO 5171, burnout tested according to ISO 7291, maximum inlet pressure: 300 bar, outlet pressure: fixed at 40 bar, maximum output: 120 Nm³/h at 40 bar outlet pressure
according to EN 560, inlet pressure gauge: 0 – 400/300 bar, outlet pressure gauge: 0 – 60/40 bar, width x height x depth: 200 x 190 x 75 mm
Technical data:
• maximum inlet pressure: 300 bar, outlet pressure: fixed at 40 bar, maximum output: 120 Nm³/h at 40 bar outlet pressure
• outlet pressure with falling pre-pressure, with safety pressure gauges according to ISO 5171, burnout tested according to ISO 7291, maximum inlet pressure: 300 bar, outlet pressure: fixed at 40 bar, maximum output: 120 Nm³/h at 40 bar outlet pressure
• output: 120 Nm³/h at 40 bar outlet pressure
• Inlet: M 24x1
• outlet: G 1/2 RHk, U-nut according to EN 560, inlet pressure gauge: 0 – 400/300 bar, outlet pressure gauge: 0 – 60/40 bar, width x height x depth: 200 x 190 x 75 mm
• inlet pressure gauge: 0 – 400/300 bar, outlet pressure gauge: 0 – 60/40 bar, width x height x depth: 200 x 190 x 75 mm
• outlet pressure gauge: 0 – 60/40 bar, width x height x depth: 200 x 190 x 75 mm
Dimensions:
width x height x depth: 200 x 190 x 75 mm
Standards & Design:
according to ISO 7291, single-stage design, with pre-pressure compensation for constant outlet pressure with falling pre-pressure, with safety pressure gauges according to ISO 5171, burnout tested according to ISO 7291, maximum inlet pressure: 300 bar, outlet pressure: fixed at 40 bar, maximum output: 120 Nm³/h at 40 bar outlet pressure
according to EN 560, inlet pressure gauge: 0 – 400/300 bar, outlet pressure gauge: 0 – 60/40 bar, width x height x depth: 200 x 190 x 75 mm
Technical data:
• maximum inlet pressure: 300 bar, outlet pressure: fixed at 40 bar, maximum output: 120 Nm³/h at 40 bar outlet pressure
• outlet pressure with falling pre-pressure, with safety pressure gauges according to ISO 5171, burnout tested according to ISO 7291, maximum inlet pressure: 300 bar, outlet pressure: fixed at 40 bar, maximum output: 120 Nm³/h at 40 bar outlet pressure
• output: 120 Nm³/h at 40 bar outlet pressure
• Inlet: M 24x1
• outlet: G 1/2 RHk, U-nut according to EN 560, inlet pressure gauge: 0 – 400/300 bar, outlet pressure gauge: 0 – 60/40 bar, width x height x depth: 200 x 190 x 75 mm
• inlet pressure gauge: 0 – 400/300 bar, outlet pressure gauge: 0 – 60/40 bar, width x height x depth: 200 x 190 x 75 mm
• outlet pressure gauge: 0 – 60/40 bar, width x height x depth: 200 x 190 x 75 mm
Dimensions:
width x height x depth: 200 x 190 x 75 mm
Application:
- Automotive Industry
- Chemical Industry
- Cutting
- Manufacturing Industry
- Petrochemical Industry
- Pharmaceutical Industry
- Research & Development
- Welding
Class (purpose):
- Technical gases
Flow rate:
120 Nm³/h
Gas Quality:
up to 4.5
HP Gauge:
HP gauge scale:
0 to 400 Bar
Inlet Connection:
M 24 x 1.5 RHak (Vareo)
Inlet pressure:
300 Bar
LP Gauge:
LP gauge scale:
0 to 60 Bar
Material:
Brass
Outlet Connection:
G 1/2 RHak (according to EN 560)
Outlet pressure:
25 Bar
Product type:
Cylinder regulators
Regulation Type:
Single stage
Type of Gas:
Oxygen (O2)
W (Width) x H (Height) x D (Depth):
200x190x75mm.
