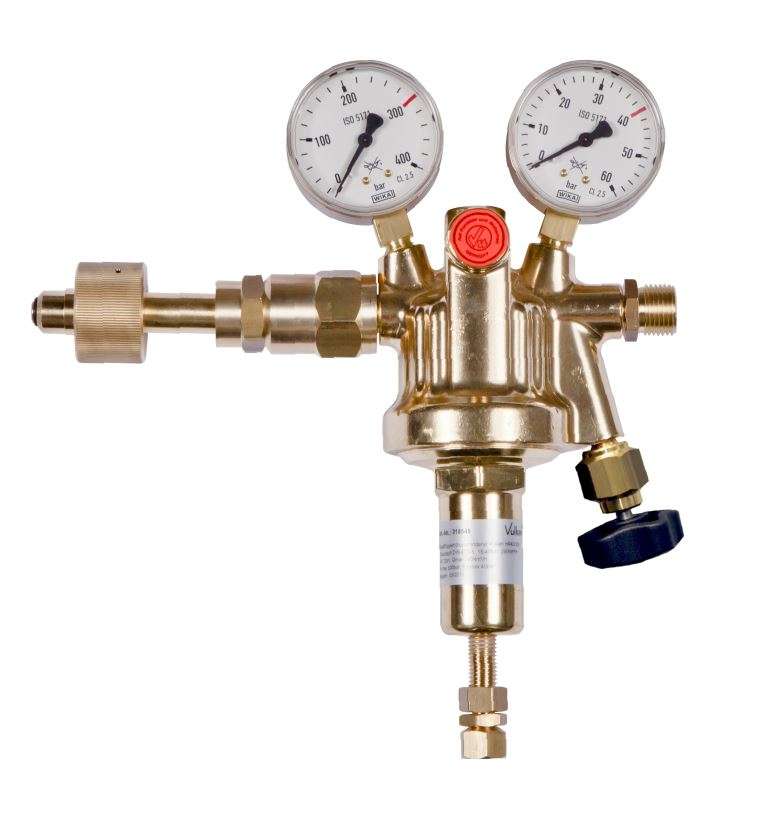

Main ribbed pressure reducer Vulkan HR40/200-MM-SV Effect nitrogen DIN477-1, 15-40 bar, 290 Nm?/h
Standards & Design:
according to ISO 7291, with metal diaphragm for gas purity up to 5
single-stage design, with safety gauges according to DIN EN ISO 5171, Inlet pressure max: 200 bar, Outlet pressure: 15 - 40 bar adjustable, Output max: 290 Nm?/h compressed air at 40 bar outlet pressure
according to DIN 477-1, Outlet: G1/2RHak according to EN 560, Inlet gauge: 0 - 315/200 bar, Outlet gauge: 0 - 60/40 bar, Width x Height x Depth: 240 x 330 x 85 mm With mounted Pressure relief/flush valve on 60° outlet #412037, handwheel (star grip) - PA, outlet (side): G1/8 RHif
Technical data:
• Outlet pressure: 15 - 40 bar adjustable, Output max: 290 Nm?/h compressed air at 40 bar outlet pressure
• Output max: 290 Nm?/h compressed air at 40 bar outlet pressure
• Inlet: W 24, 32 x 1/14 RH U-nut according to DIN 477-1, Outlet: G1/2RHak according to EN 560, Inlet gauge: 0 - 315/200 bar, Outlet gauge: 0 - 60/40 bar, Width x Height x Depth: 240 x 330 x 85 mm With mounted Pressure relief/flush valve on 60° outlet #412037, handwheel (star grip) - PA, outlet (side): G1/8 RHif
• Outlet: G1/2RHak according to EN 560, Inlet gauge: 0 - 315/200 bar, Outlet gauge: 0 - 60/40 bar, Width x Height x Depth: 240 x 330 x 85 mm With mounted Pressure relief/flush valve on 60° outlet #412037, handwheel (star grip) - PA, outlet (side): G1/8 RHif
Dimensions:
Width x Height x Depth: 240 x 330 x 85 mm With mounted Pressure relief/flush valve on 60° outlet #412037, handwheel (star grip) - PA, outlet (side): G1/8 RHif
Standards & Design:
according to ISO 7291, with metal diaphragm for gas purity up to 5
single-stage design, with safety gauges according to DIN EN ISO 5171, Inlet pressure max: 200 bar, Outlet pressure: 15 - 40 bar adjustable, Output max: 290 Nm?/h compressed air at 40 bar outlet pressure
according to DIN 477-1, Outlet: G1/2RHak according to EN 560, Inlet gauge: 0 - 315/200 bar, Outlet gauge: 0 - 60/40 bar, Width x Height x Depth: 240 x 330 x 85 mm With mounted Pressure relief/flush valve on 60° outlet #412037, handwheel (star grip) - PA, outlet (side): G1/8 RHif
Technical data:
• Outlet pressure: 15 - 40 bar adjustable, Output max: 290 Nm?/h compressed air at 40 bar outlet pressure
• Output max: 290 Nm?/h compressed air at 40 bar outlet pressure
• Inlet: W 24, 32 x 1/14 RH U-nut according to DIN 477-1, Outlet: G1/2RHak according to EN 560, Inlet gauge: 0 - 315/200 bar, Outlet gauge: 0 - 60/40 bar, Width x Height x Depth: 240 x 330 x 85 mm With mounted Pressure relief/flush valve on 60° outlet #412037, handwheel (star grip) - PA, outlet (side): G1/8 RHif
• Outlet: G1/2RHak according to EN 560, Inlet gauge: 0 - 315/200 bar, Outlet gauge: 0 - 60/40 bar, Width x Height x Depth: 240 x 330 x 85 mm With mounted Pressure relief/flush valve on 60° outlet #412037, handwheel (star grip) - PA, outlet (side): G1/8 RHif
Dimensions:
Width x Height x Depth: 240 x 330 x 85 mm With mounted Pressure relief/flush valve on 60° outlet #412037, handwheel (star grip) - PA, outlet (side): G1/8 RHif
Application:
- Gas Chromatography
- Laboratory
- Medical Technology
- Pharmaceutical Industry
- Photovoltaic Industry
- Research & Development
- Semiconductor Industry
- Spectrometry
- Universities
Class (purpose):
- Laboratory gases
Flow rate:
290 Nm³/h
Gas Quality:
up to 5.0
HP Gauge:
HP gauge scale:
0 to 315 Bar
Inlet Connection:
DIN 477-1 No. 10 (W 24.32 x 1/14 RH)
Inlet pressure:
200 Bar
LP Gauge:
LP gauge scale:
0 to 60 Bar
Material:
Brass
Outlet Connection:
G 1/2 RHak (according to EN 560)
Outlet pressure:
40 Bar
Product type:
Cylinder regulators
Regulation Type:
Single stage
Type of Gas:
Nitrogen (N2)
W (Width) x H (Height) x D (Depth):
240x330x85mm.
